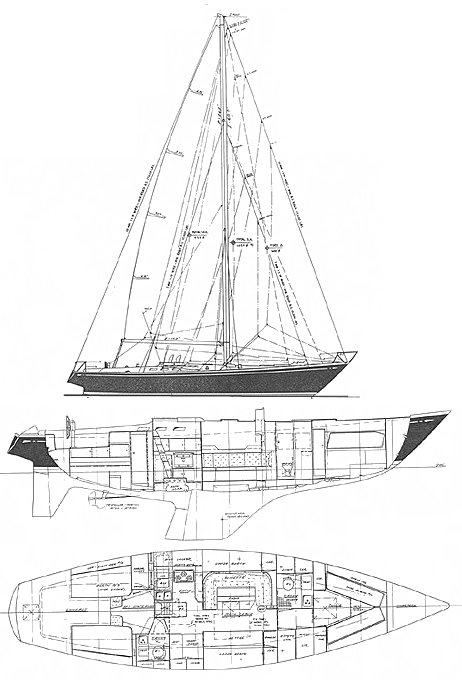

SWAN 48 - S&S
Built by Nautor
• Designed by Sparkman & Stephens
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1971
Last Built:
1976
Number Built:
46
Dimensions
Length Overall (LOA):
14.60 m
Length Waterline (LWL):
11.36 m
Beam:
4.15 m
Draft (Max):
2.36 m
Weight & Ballast
Displacement:
16,329 kg
Ballast:
6,396 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
55.74 m²
Mainsail Area:
40.13 m²
Total Sail Area (calculated):
95.87 m²
Sail Area (reported):
95.88 m²
I (Fore Triangle Height):
18.29 m
J (Fore Triangle Base):
6.10 m
P (Mainsail Hoist):
16.46 m
E (Boom Length):
4.88 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
MD21A
Engine Power:
36 HP
Fuel Capacity:
208 L
Water Capacity:
341 L
Performance Ratios
Hull Speed:
8.18 knots
SA/Displacement (Calculated):
14.90
SA/Displacement (Reported):
15.21
Ballast/Disp Ratio:
39.17%
Displacement/Length:
310.19
Comfort Ratio:
42.53
Capsize Screening:
1.65
S-Number:
1.54
Notes
S&S design #2079.
