SWAN 46
Built by Nautor
• Designed by German Frers
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1983
Last Built:
1997
Number Built:
109
Dimensions
Length Overall (LOA):
14.35 m
Length Waterline (LWL):
11.53 m
Beam:
4.40 m
Draft (Max):
2.50 m
Weight & Ballast
Displacement:
14,197 kg
Ballast:
5,171 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
50.44 m²
Mainsail Area:
40.43 m²
Total Sail Area (calculated):
90.87 m²
Sail Area (reported):
90.86 m²
I (Fore Triangle Height):
17.70 m
J (Fore Triangle Base):
5.70 m
P (Mainsail Hoist):
15.70 m
E (Boom Length):
5.15 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Power:
50 HP
Fuel Capacity:
375 L
Water Capacity:
481 L
Performance Ratios
Hull Speed:
8.24 knots
SA/Displacement (Calculated):
15.50
SA/Displacement (Reported):
15.82
Ballast/Disp Ratio:
36.42%
Displacement/Length:
258.10
Comfort Ratio:
34.09
Capsize Screening:
1.83
S-Number:
1.99
Notes

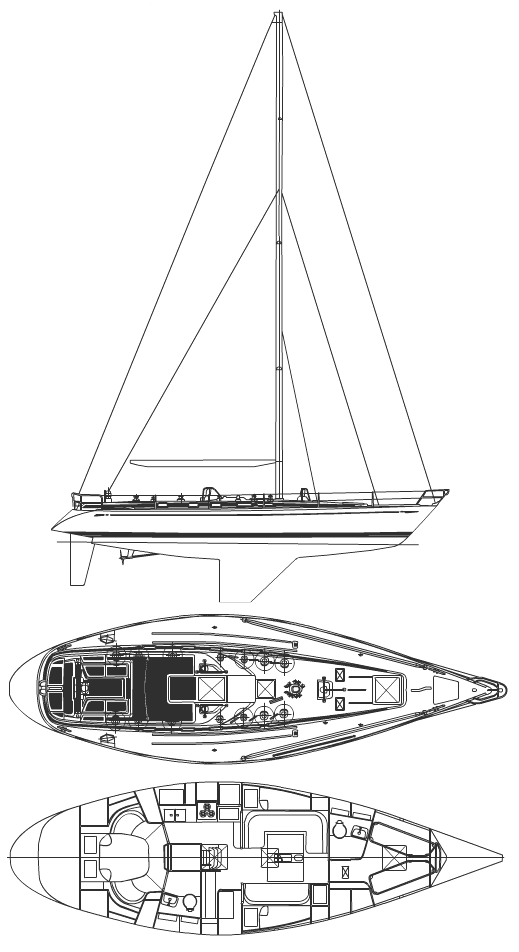

Mk I(81 built)shown above.
