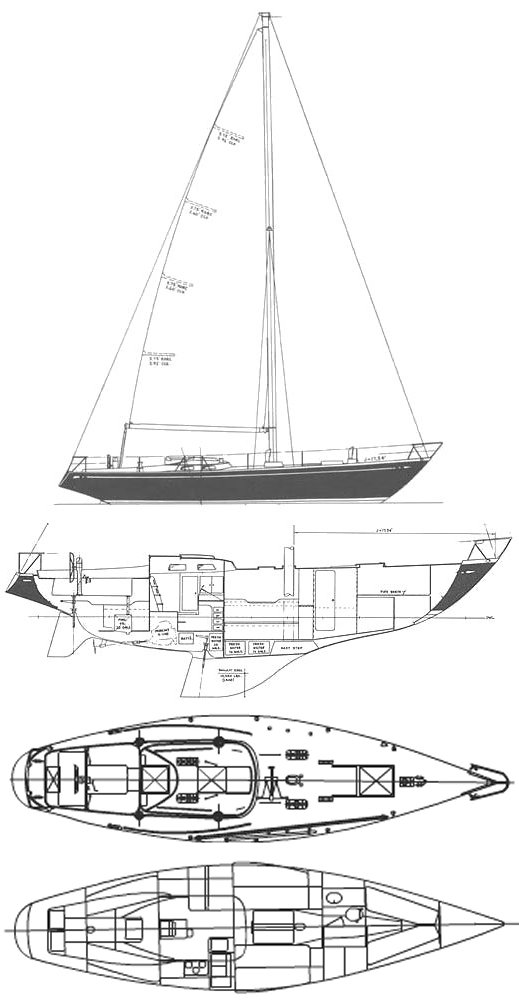

SWAN 43 (S&S)
Built by Nautor
• Designed by Sparkman & Stephens
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1967
Last Built:
1982
Number Built:
67
Dimensions
Length Overall (LOA):
13.04 m
Length Waterline (LWL):
9.45 m
Beam:
3.56 m
Draft (Max):
2.18 m
Weight & Ballast
Displacement:
9,004 kg
Ballast:
4,717 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
41.99 m²
Mainsail Area:
34.30 m²
Total Sail Area (calculated):
76.29 m²
Sail Area (reported):
76.65 m²
I (Fore Triangle Height):
15.71 m
J (Fore Triangle Base):
5.35 m
P (Mainsail Hoist):
14.03 m
E (Boom Length):
4.89 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
MD2B
Engine Power:
25 HP
Fuel Capacity:
151 L
Water Capacity:
189 L
Performance Ratios
Hull Speed:
7.46 knots
SA/Displacement (Calculated):
17.63
SA/Displacement (Reported):
18.07
Ballast/Disp Ratio:
52.39%
Displacement/Length:
297.46
Comfort Ratio:
33.68
Capsize Screening:
1.73
S-Number:
1.84
Notes
S&S design #1973. Originally designed fo the RORC rule.
