SWAN 43 (HOLLAND)
Built by Nautor
• Designed by Ron Holland
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1985
Last Built:
1990
Number Built:
28
Dimensions
Length Overall (LOA):
13.05 m
Length Waterline (LWL):
10.40 m
Beam:
4.00 m
Draft (Max):
1.89 m
Weight & Ballast
Displacement:
11,082 kg
Ballast:
4,100 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
46.23 m²
Mainsail Area:
35.44 m²
Total Sail Area (calculated):
81.67 m²
Sail Area (reported):
81.75 m²
I (Fore Triangle Height):
17.35 m
J (Fore Triangle Base):
5.33 m
P (Mainsail Hoist):
15.24 m
E (Boom Length):
4.65 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Power:
45 HP
Fuel Capacity:
265 L
Water Capacity:
322 L
Performance Ratios
Hull Speed:
7.83 knots
SA/Displacement (Calculated):
16.43
SA/Displacement (Reported):
16.79
Ballast/Disp Ratio:
37.00%
Displacement/Length:
274.59
Comfort Ratio:
33.35
Capsize Screening:
1.81
S-Number:
1.93
Notes

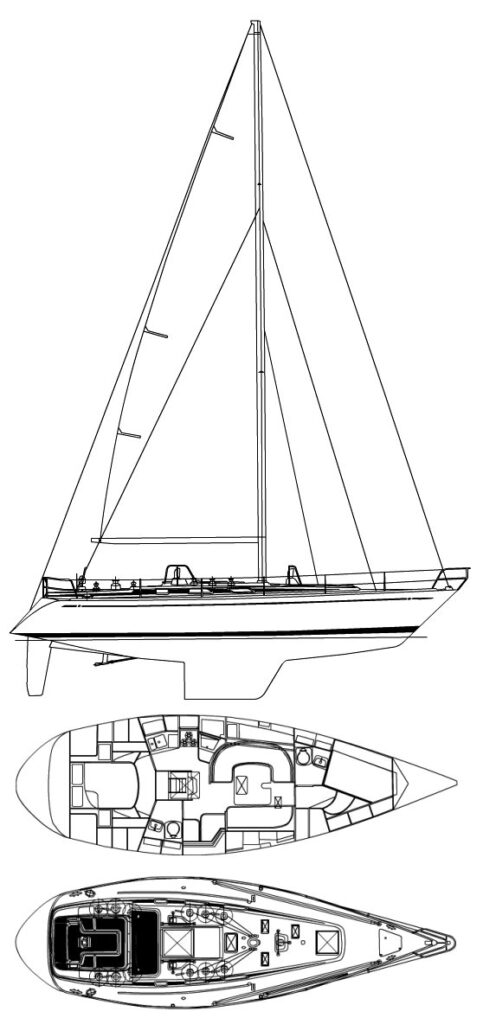

Sheel keel (shown here) was standard with deep keel option.(draft 7.7') and taller rig. (A number of different keel and rig combinations were available.)
