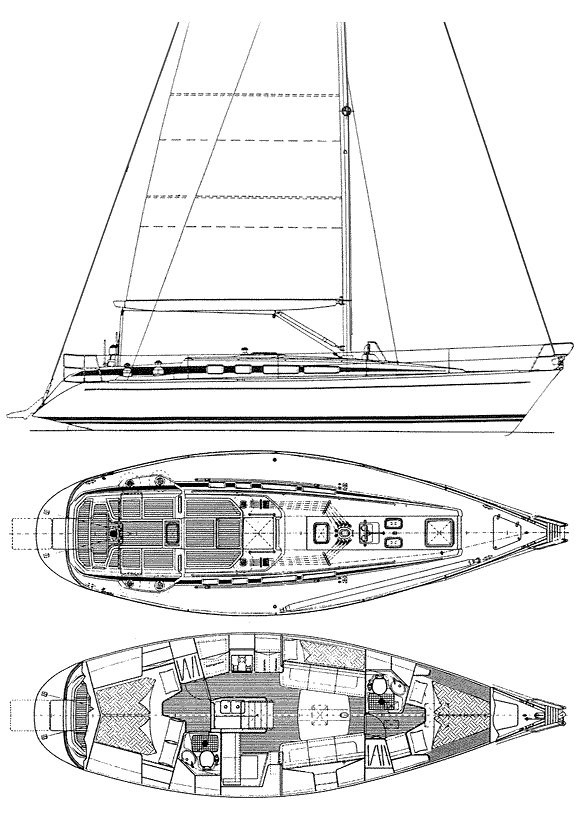

SWAN 40 (FRERS)
Built by Nautor
• Designed by German Frers
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1992
Last Built:
2001
Number Built:
58
Dimensions
Length Overall (LOA):
12.27 m
Length Waterline (LWL):
9.88 m
Beam:
3.94 m
Draft (Max):
2.15 m
Weight & Ballast
Displacement:
8,800 kg
Ballast:
3,171 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
40.49 m²
Mainsail Area:
36.61 m²
Total Sail Area (calculated):
77.10 m²
Sail Area (reported):
77.11 m²
I (Fore Triangle Height):
16.70 m
J (Fore Triangle Base):
4.85 m
P (Mainsail Hoist):
14.50 m
E (Boom Length):
5.05 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Fuel Capacity:
235 L
Water Capacity:
424 L
Performance Ratios
Hull Speed:
7.63 knots
SA/Displacement (Calculated):
18.09
SA/Displacement (Reported):
18.46
Ballast/Disp Ratio:
36.03%
Displacement/Length:
253.93
Comfort Ratio:
28.55
Capsize Screening:
1.93
S-Number:
2.27
Notes
Deep keel: 8.2'/2.5m
