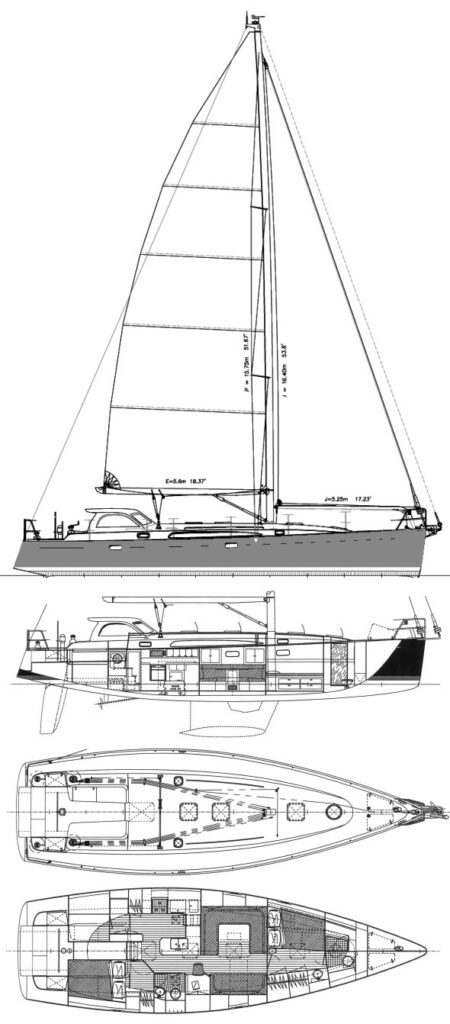

AERODYNE 47
Built by Aerodyne Marine (ZAF)
• Designed by Rodger Martin
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
Composite
First Built:
2001
Number Built:
2
Dimensions
Length Overall (LOA):
14.20 m
Length Waterline (LWL):
12.83 m
Beam:
4.37 m
Draft (Max):
1.83 m
Weight & Ballast
Displacement:
11,508 kg
Ballast:
4,686 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
43.06 m²
Mainsail Area:
44.09 m²
Total Sail Area (calculated):
87.15 m²
Sail Area (reported):
87.14 m²
I (Fore Triangle Height):
16.40 m
J (Fore Triangle Base):
5.25 m
P (Mainsail Hoist):
15.75 m
E (Boom Length):
5.60 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
56 HP
Fuel Capacity:
379 L
Water Capacity:
757 L
Performance Ratios
Hull Speed:
8.69 knots
SA/Displacement (Calculated):
17.10
SA/Displacement (Reported):
17.45
Ballast/Disp Ratio:
40.72%
Displacement/Length:
152.00
Comfort Ratio:
26.05
Capsize Screening:
1.95
S-Number:
3.40
