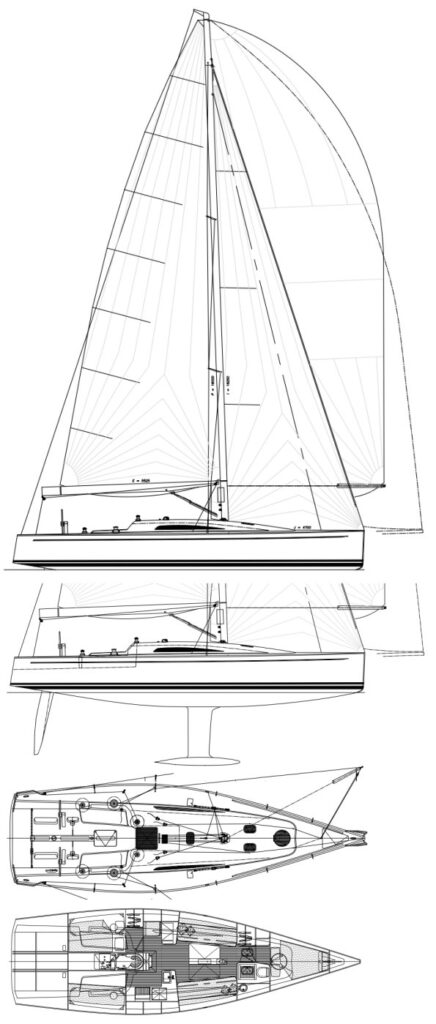

SUMMIT 40
Built by Summit Yachts (USA)
• Designed by Mills Design
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2003
Dimensions
Length Overall (LOA):
12.11 m
Length Waterline (LWL):
10.60 m
Beam:
3.70 m
Draft (Max):
2.51 m
Weight & Ballast
Displacement:
7,100 kg
Ballast:
3,300 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
38.19 m²
Mainsail Area:
41.99 m²
Total Sail Area (calculated):
80.18 m²
Sail Area (reported):
80.18 m²
I (Fore Triangle Height):
16.25 m
J (Fore Triangle Base):
4.70 m
P (Mainsail Hoist):
16.00 m
E (Boom Length):
5.25 m
Engine & Systems
Engine Make:
Yanmar w/saildrive
Engine Type:
Diesel
Engine Model:
3JH4E
Engine Power:
39 HP
Fuel Capacity:
98 L
Water Capacity:
201 L
Performance Ratios
Hull Speed:
7.90 knots
SA/Displacement (Calculated):
21.70
SA/Displacement (Reported):
22.15
Ballast/Disp Ratio:
46.48%
Displacement/Length:
166.10
Comfort Ratio:
24.00
Capsize Screening:
1.94
S-Number:
3.79
Notes
Originally called the KING 40.
