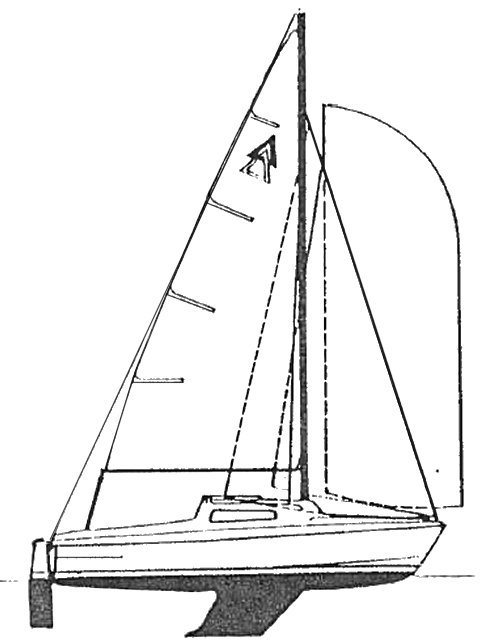

STORTRISS MKII
Built by ABC Fabrikerna
• Designed by Per Brohäll
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1969
Last Built:
1977
Number Built:
1000
Dimensions
Length Overall (LOA):
5.25 m
Length Waterline (LWL):
4.70 m
Beam:
2.00 m
Draft (Max):
0.95 m
Weight & Ballast
Displacement:
585 kg
Ballast:
185 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
4.37 m²
Mainsail Area:
7.46 m²
Total Sail Area (calculated):
11.83 m²
Sail Area (reported):
11.80 m²
I (Fore Triangle Height):
5.30 m
J (Fore Triangle Base):
1.65 m
P (Mainsail Hoist):
5.85 m
E (Boom Length):
2.55 m
Engine & Systems
Performance Ratios
Hull Speed:
5.26 knots
SA/Displacement (Calculated):
16.91
SA/Displacement (Reported):
17.18
Ballast/Disp Ratio:
31.63%
Displacement/Length:
157.07
Comfort Ratio:
10.19
Capsize Screening:
2.41
S-Number:
3.30
Notes
STORTRISS MKI has standard trunk cabin with side decks.
