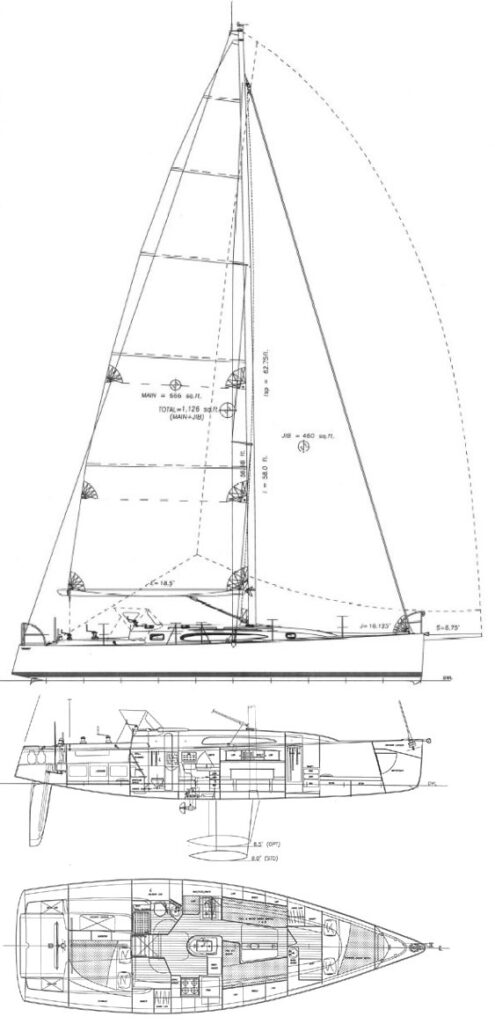

AERODYNE 43
Built by Aerodyne Marine (ZAF)
• Designed by Rodger Martin
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
Composite
First Built:
2001
Dimensions
Length Overall (LOA):
12.95 m
Length Waterline (LWL):
11.83 m
Beam:
4.27 m
Draft (Max):
2.44 m
Weight & Ballast
Displacement:
7,371 kg
Ballast:
2,722 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
43.46 m²
Mainsail Area:
48.69 m²
Total Sail Area (calculated):
92.15 m²
Sail Area (reported):
104.61 m²
I (Fore Triangle Height):
17.68 m
J (Fore Triangle Base):
4.92 m
P (Mainsail Hoist):
17.27 m
E (Boom Length):
5.64 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3JH3
Engine Power:
40 HP
Fuel Capacity:
132 L
Water Capacity:
303 L
Performance Ratios
Hull Speed:
8.35 knots
SA/Displacement (Calculated):
24.33
SA/Displacement (Reported):
28.19
Ballast/Disp Ratio:
36.92%
Displacement/Length:
124.20
Comfort Ratio:
18.73
Capsize Screening:
2.21
S-Number:
4.92
Notes
Shallow draft: 6.5'/1.98m. Sail drive. Optional long range fuel and water tanks are available.
