STANDFAST 40
Built by Frans Maas/Standfast
• Designed by Frans Maas
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1972
Last Built:
1984
Number Built:
110
Dimensions
Length Overall (LOA):
12.19 m
Length Waterline (LWL):
9.91 m
Beam:
3.99 m
Draft (Max):
2.13 m
Weight & Ballast
Displacement:
9,525 kg
Ballast:
3,992 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
44.84 m²
Mainsail Area:
31.25 m²
Total Sail Area (calculated):
76.09 m²
Sail Area (reported):
76.09 m²
I (Fore Triangle Height):
17.01 m
J (Fore Triangle Base):
5.27 m
P (Mainsail Hoist):
14.75 m
E (Boom Length):
4.24 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
MD28
Engine Power:
25 HP
Fuel Capacity:
314 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
7.64 knots
SA/Displacement (Calculated):
16.93
SA/Displacement (Reported):
17.28
Ballast/Disp Ratio:
41.90%
Displacement/Length:
273.10
Comfort Ratio:
30.43
Capsize Screening:
1.90
S-Number:
1.99
Notes

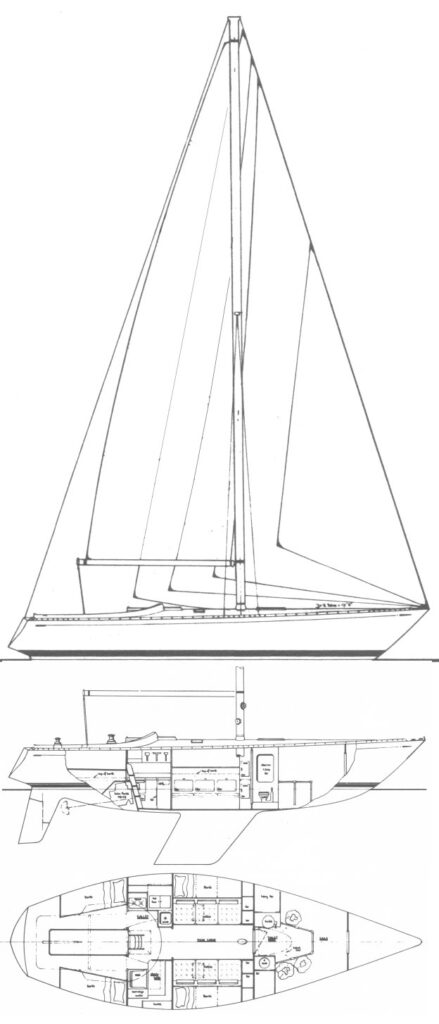

This design finished 1st and 2nd in the 1975 Fasnet race. Shown here is the flush deck 'competition'model. Other versions ('S' and 'P') were delivered with a low coach roof and a more conservative rig.
