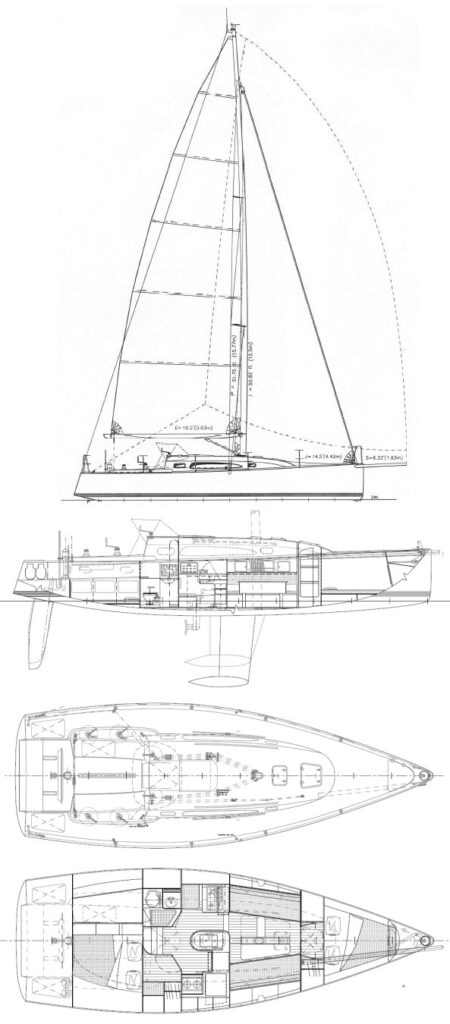

AERODYNE 38
Built by Aerodyne Marine (ZAF)
• Designed by Rodger Martin and Steve Koopman
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
Composite
First Built:
2000
Number Built:
18
Dimensions
Length Overall (LOA):
11.48 m
Length Waterline (LWL):
10.43 m
Beam:
3.96 m
Draft (Max):
2.36 m
Weight & Ballast
Displacement:
5,103 kg
Ballast:
1,882 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
34.23 m²
Mainsail Area:
39.66 m²
Total Sail Area (calculated):
73.89 m²
Sail Area (reported):
73.86 m²
I (Fore Triangle Height):
15.49 m
J (Fore Triangle Base):
4.42 m
P (Mainsail Hoist):
15.77 m
E (Boom Length):
5.03 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3GM30F
Engine Power:
27 HP
Fuel Capacity:
95 L
Water Capacity:
265 L
Performance Ratios
Hull Speed:
7.84 knots
SA/Displacement (Calculated):
24.93
SA/Displacement (Reported):
25.42
Ballast/Disp Ratio:
36.89%
Displacement/Length:
125.44
Comfort Ratio:
16.20
Capsize Screening:
2.32
S-Number:
4.97
Notes
Shallow draft version: 6.0'.
