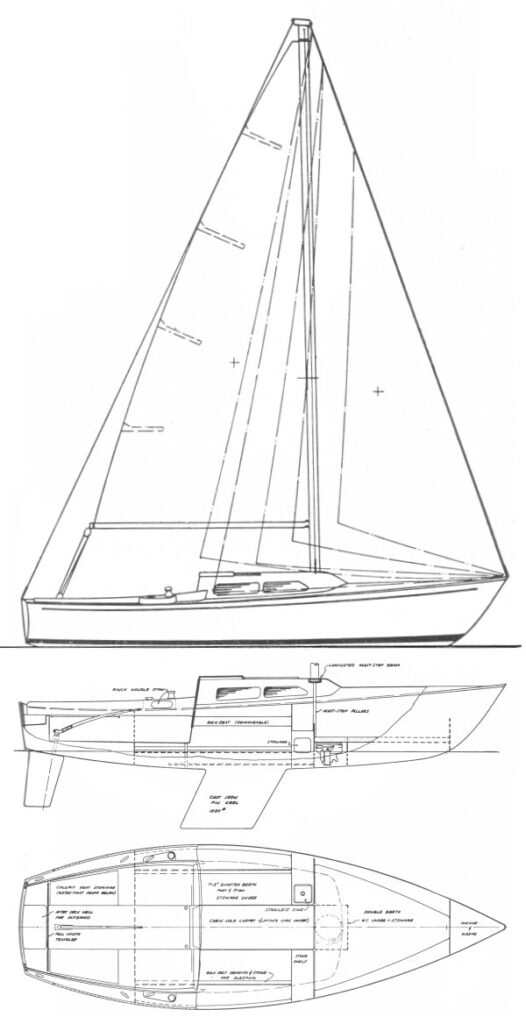

SANTANA 22
Built by W.D. Schock Corp. (USA)
• Designed by Gary Mull
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1966
Number Built:
800
Dimensions
Length Overall (LOA):
6.78 m
Length Waterline (LWL):
5.72 m
Beam:
2.29 m
Draft (Max):
1.07 m
Weight & Ballast
Displacement:
1,179 kg
Ballast:
558 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
10.27 m²
Mainsail Area:
10.03 m²
Total Sail Area (calculated):
20.30 m²
Sail Area (reported):
20.25 m²
I (Fore Triangle Height):
7.92 m
J (Fore Triangle Base):
2.59 m
P (Mainsail Hoist):
6.64 m
E (Boom Length):
3.02 m
Engine & Systems
Performance Ratios
Hull Speed:
5.80 knots
SA/Displacement (Calculated):
18.18
SA/Displacement (Reported):
18.49
Ballast/Disp Ratio:
47.31%
Displacement/Length:
176.08
Comfort Ratio:
13.85
Capsize Screening:
2.18
S-Number:
3.20
Notes
The SANTANA 22 is the first production design by Gary Mull. An updated version was still being built in 2010.
