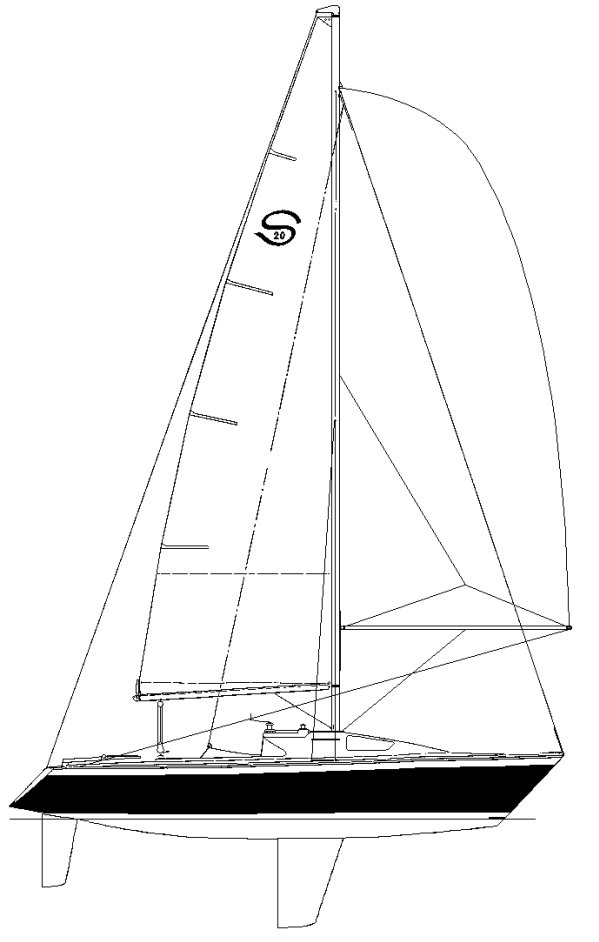

SANTANA 20
Built by W. D. Schock Corp.(USA)
• Designed by Shad Turner
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1976
Number Built:
900
Dimensions
Length Overall (LOA):
6.16 m
Length Waterline (LWL):
4.88 m
Beam:
2.44 m
Draft (Max):
1.22 m
Weight & Ballast
Displacement:
612 kg
Ballast:
249 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
9.29 m²
Mainsail Area:
7.97 m²
Total Sail Area (calculated):
17.26 m²
Sail Area (reported):
18.95 m²
I (Fore Triangle Height):
7.47 m
J (Fore Triangle Base):
2.49 m
P (Mainsail Hoist):
7.47 m
E (Boom Length):
2.13 m
Engine & Systems
Performance Ratios
Hull Speed:
5.36 knots
SA/Displacement (Calculated):
23.93
SA/Displacement (Reported):
26.78
Ballast/Disp Ratio:
40.74%
Displacement/Length:
147.14
Comfort Ratio:
7.57
Capsize Screening:
2.90
S-Number:
4.39
Notes
1996, W.D. Schock Corp, redesigned the deck of the boat creating an opened transom and roomier cockpit. The change did not affect the performance characteristics of the boat.
