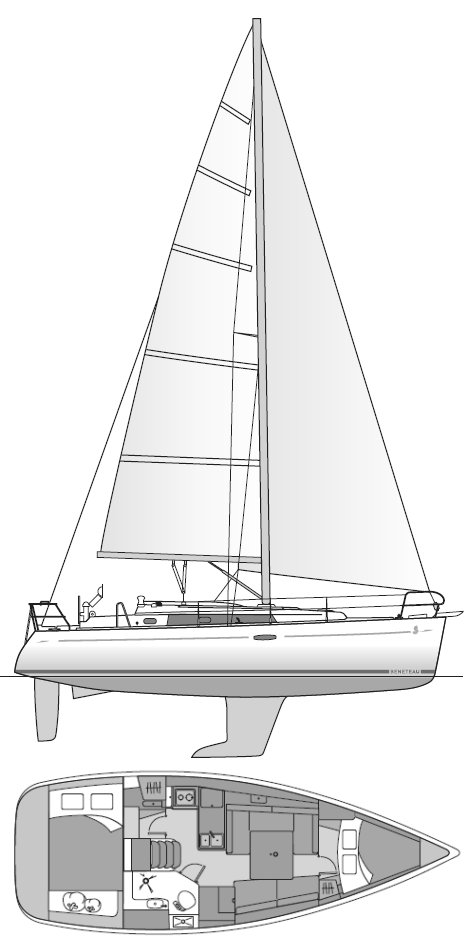

BENETEAU 34
Built by Beneteau (USA)
• Designed by Finot / Conq Assoc.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2008
Dimensions
Length Overall (LOA):
10.34 m
Length Waterline (LWL):
9.35 m
Beam:
3.66 m
Draft (Max):
1.85 m
Weight & Ballast
Displacement:
5,700 kg
Ballast:
1,455 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
26.83 m²
Mainsail Area:
23.50 m²
Total Sail Area (calculated):
50.33 m²
Sail Area (reported):
50.35 m²
I (Fore Triangle Height):
12.88 m
J (Fore Triangle Base):
4.17 m
P (Mainsail Hoist):
12.09 m
E (Boom Length):
3.89 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
29 HP
Fuel Capacity:
129 L
Water Capacity:
314 L
Performance Ratios
Hull Speed:
7.42 knots
SA/Displacement (Calculated):
15.77
SA/Displacement (Reported):
16.10
Ballast/Disp Ratio:
25.53%
Displacement/Length:
194.45
Comfort Ratio:
22.42
Capsize Screening:
2.07
S-Number:
2.66
Notes
Shallow draft vers: draft- 4.5' ballast - 3556 lbs.
