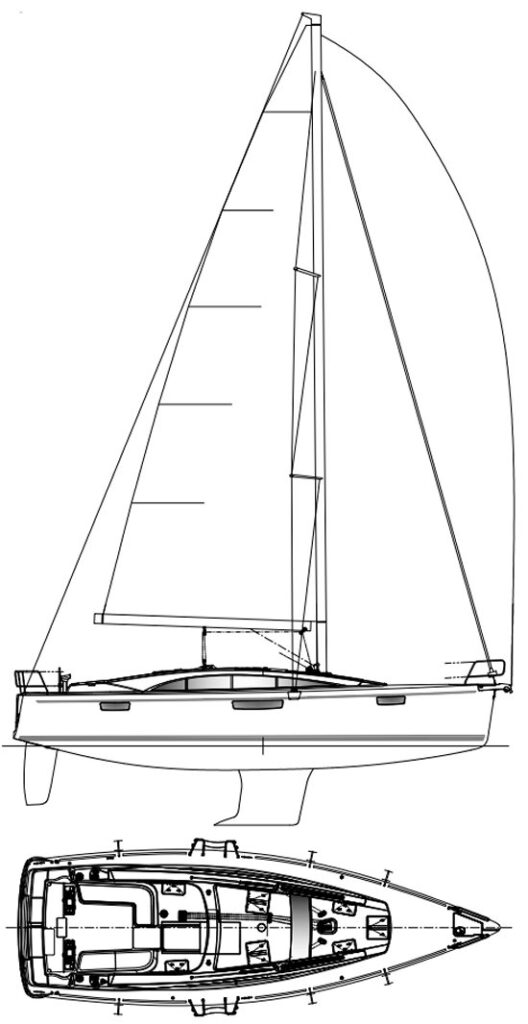

BAVARIA VISION 42
Built by Bavaria Yachts
• Designed by Bruce Farr
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2014
Dimensions
Length Overall (LOA):
12.80 m
Length Waterline (LWL):
11.40 m
Beam:
4.05 m
Draft (Max):
2.07 m
Max Height:
18.93 m
Weight & Ballast
Displacement:
9,800 kg
Ballast:
2,450 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
34.99 m²
Mainsail Area:
42.23 m²
Total Sail Area (calculated):
77.22 m²
Sail Area (reported):
87.89 m²
I (Fore Triangle Height):
16.01 m
J (Fore Triangle Base):
4.37 m
P (Mainsail Hoist):
15.25 m
E (Boom Length):
5.54 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
D2-40 w/sd
Engine Power:
40 HP
Fuel Capacity:
208 L
Water Capacity:
208 L
Performance Ratios
Hull Speed:
8.19 knots
SA/Displacement (Calculated):
16.86
SA/Displacement (Reported):
19.59
Ballast/Disp Ratio:
25.00%
Displacement/Length:
184.37
Comfort Ratio:
27.46
Capsize Screening:
1.91
S-Number:
2.92
Notes
Shallow draft: (iron keel)1.62m/5.31'
