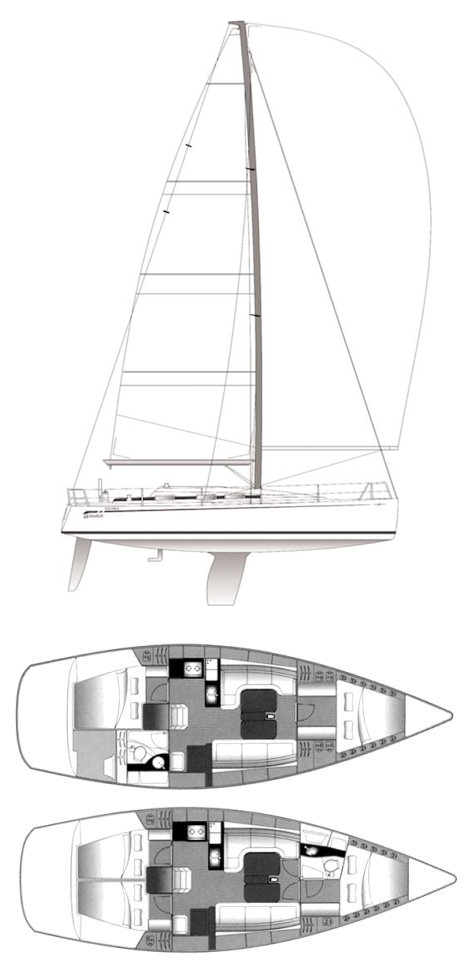

BAVARIA MATCH 38
Built by Bavaria Yachts (GER)
• Designed by Doug Peterson/J&J Design
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2003
Last Built:
2006
Dimensions
Length Overall (LOA):
11.38 m
Length Waterline (LWL):
10.26 m
Beam:
3.71 m
Draft (Max):
2.16 m
Weight & Ballast
Displacement:
6,387 kg
Ballast:
1,996 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
33.32 m²
Mainsail Area:
33.48 m²
Total Sail Area (calculated):
66.80 m²
Sail Area (reported):
88.44 m²
I (Fore Triangle Height):
14.34 m
J (Fore Triangle Base):
4.65 m
P (Mainsail Hoist):
13.38 m
E (Boom Length):
5.00 m
Engine & Systems
Engine Make:
Volvo-Penta
Engine Type:
Diesel; Saildrive
Engine Model:
D1-30
Engine Power:
28 HP
Fuel Capacity:
95 L
Water Capacity:
151 L
Performance Ratios
Hull Speed:
7.78 knots
SA/Displacement (Calculated):
19.41
SA/Displacement (Reported):
26.22
Ballast/Disp Ratio:
31.25%
Displacement/Length:
164.67
Comfort Ratio:
22.44
Capsize Screening:
2.02
S-Number:
3.53
Notes
Rig dimensions from IMS cert.
