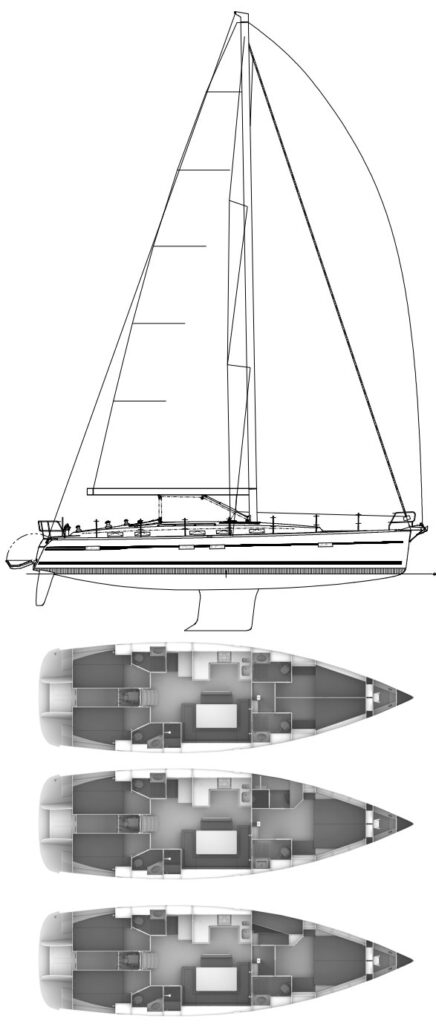

BAVARIA CRUISER 50
Built by Bavaria Yachts (GER)
• Designed by Farr Yacht Design
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2005
Dimensions
Length Overall (LOA):
14.99 m
Length Waterline (LWL):
13.86 m
Beam:
4.67 m
Draft (Max):
1.85 m
Weight & Ballast
Displacement:
12,600 kg
Ballast:
4,581 kg
Sail Plan
Foresail Area:
59.47 m²
Mainsail Area:
57.13 m²
Total Sail Area (calculated):
116.60 m²
Sail Area (reported):
116.59 m²
I (Fore Triangle Height):
19.50 m
J (Fore Triangle Base):
6.10 m
P (Mainsail Hoist):
18.52 m
E (Boom Length):
6.17 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
D2-75
Engine Power:
75 HP
Fuel Capacity:
299 L
Water Capacity:
560 L
Performance Ratios
Hull Speed:
9.04 knots
SA/Displacement (Calculated):
21.53
SA/Displacement (Reported):
21.98
Ballast/Disp Ratio:
36.36%
Displacement/Length:
131.91
Comfort Ratio:
24.33
Capsize Screening:
2.03
S-Number:
4.38
Notes
Draft w/opt. deep keel: 2.25m/7.38'
