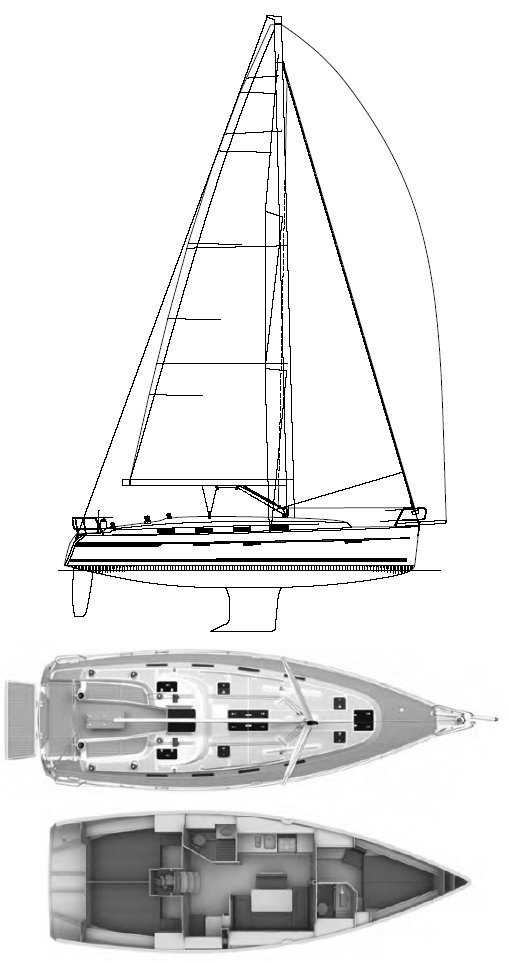

BAVARIA CRUISER 40 (FARR)
Built by Bavaria Yachts
• Designed by B. Farr
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2011
Dimensions
Length Overall (LOA):
12.34 m
Length Waterline (LWL):
10.77 m
Beam:
3.94 m
Draft (Max):
2.03 m
Max Height:
18.68 m
Weight & Ballast
Displacement:
8,679 kg
Ballast:
2,781 kg
Sail Plan
Foresail Area:
33.25 m²
Mainsail Area:
40.47 m²
Total Sail Area (calculated):
73.72 m²
Sail Area (reported):
81.94 m²
I (Fore Triangle Height):
15.83 m
J (Fore Triangle Base):
4.20 m
P (Mainsail Hoist):
15.36 m
E (Boom Length):
5.27 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Power:
27 HP
Fuel Capacity:
210 L
Water Capacity:
210 L
Performance Ratios
Hull Speed:
7.96 knots
SA/Displacement (Calculated):
17.46
SA/Displacement (Reported):
19.80
Ballast/Disp Ratio:
32.04%
Displacement/Length:
193.71
Comfort Ratio:
26.55
Capsize Screening:
1.94
S-Number:
2.88
Notes
Shallow draft: 5.41'/1.65m
