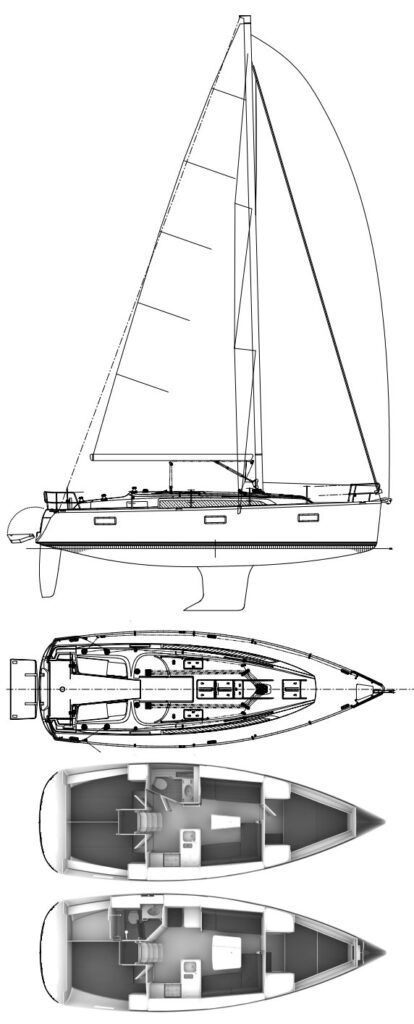

BAVARIA CRUISER 37
Built by Bavaria Yachts (GER)
• Designed by Bruce Farr
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2013
Dimensions
Length Overall (LOA):
11.30 m
Length Waterline (LWL):
9.90 m
Beam:
3.67 m
Draft (Max):
1.95 m
Max Height:
16.82 m
Weight & Ballast
Displacement:
7,000 kg
Ballast:
2,080 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
24.52 m²
Mainsail Area:
34.62 m²
Total Sail Area (calculated):
59.14 m²
Sail Area (reported):
59.18 m²
I (Fore Triangle Height):
13.15 m
J (Fore Triangle Base):
3.73 m
P (Mainsail Hoist):
13.58 m
E (Boom Length):
5.10 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
D1-20
Engine Power:
18 HP
Fuel Capacity:
151 L
Water Capacity:
208 L
Performance Ratios
Hull Speed:
7.64 knots
SA/Displacement (Calculated):
16.16
SA/Displacement (Reported):
16.50
Ballast/Disp Ratio:
29.72%
Displacement/Length:
201.06
Comfort Ratio:
25.62
Capsize Screening:
1.94
S-Number:
2.63
Notes
Farr Design #726M
