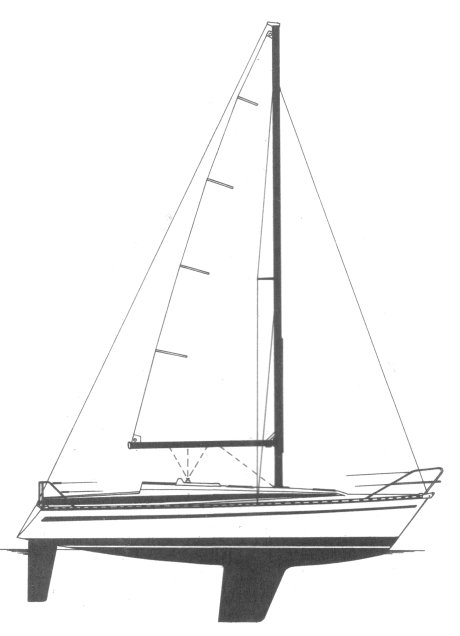

BAVARIA 960
Built by Bavaria
• Designed by Axel Mohnhaupt
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1985
Dimensions
Length Overall (LOA):
9.60 m
Length Waterline (LWL):
7.90 m
Beam:
3.00 m
Draft (Max):
1.70 m
Weight & Ballast
Displacement:
3,600 kg
Ballast:
1,440 kg
Sail Plan
Foresail Area:
17.06 m²
Mainsail Area:
19.42 m²
Total Sail Area (calculated):
36.48 m²
Sail Area (reported):
36.51 m²
I (Fore Triangle Height):
10.28 m
J (Fore Triangle Base):
3.32 m
P (Mainsail Hoist):
10.95 m
E (Boom Length):
3.55 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel; Saildrive
Engine Power:
18 HP
Fuel Capacity:
76 L
Water Capacity:
114 L
Performance Ratios
Hull Speed:
6.82 knots
SA/Displacement (Calculated):
15.53
SA/Displacement (Reported):
15.85
Ballast/Disp Ratio:
40.00%
Displacement/Length:
203.47
Comfort Ratio:
21.15
Capsize Screening:
1.98
S-Number:
2.53
Notes
Overall length including overhangs: 10m / 32.8ft
