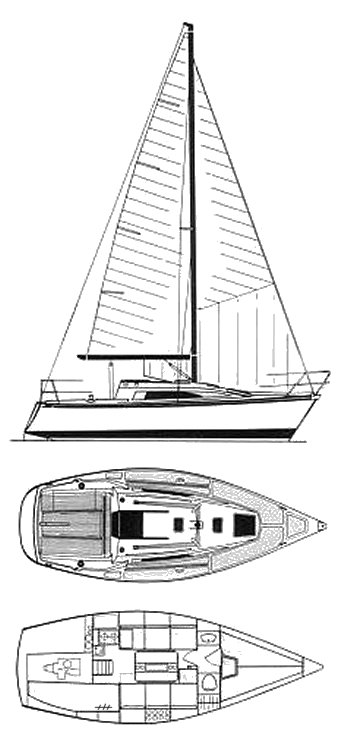

BAVARIA 820
Built by Bavaria
• Designed by Axel Mohnhaupt
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1982
Last Built:
1985
Number Built:
130
Dimensions
Length Overall (LOA):
8.23 m
Length Waterline (LWL):
6.71 m
Beam:
2.74 m
Draft (Max):
1.52 m
Weight & Ballast
Displacement:
2,495 kg
Sail Plan
Foresail Area:
13.94 m²
Mainsail Area:
12.05 m²
Total Sail Area (calculated):
25.99 m²
Sail Area (reported):
26.01 m²
I (Fore Triangle Height):
9.14 m
J (Fore Triangle Base):
3.05 m
P (Mainsail Hoist):
8.60 m
E (Boom Length):
2.80 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
MC5C
Engine Power:
10 HP
Performance Ratios
Hull Speed:
6.29 knots
SA/Displacement (Calculated):
14.13
SA/Displacement (Reported):
14.42
Displacement/Length:
230.59
Comfort Ratio:
19.37
Capsize Screening:
2.04
S-Number:
2.08
