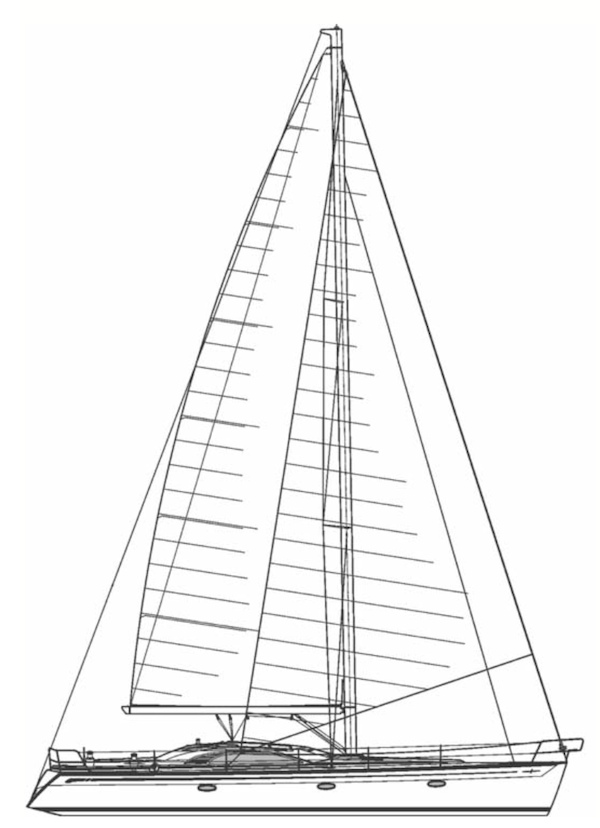

BAVARIA 50 VISION
Built by Bavaria Yachts (GER)
• Designed by J&J Design
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2007
Last Built:
2011
Dimensions
Length Overall (LOA):
15.70 m
Length Waterline (LWL):
13.45 m
Beam:
4.49 m
Draft (Max):
1.90 m
Headroom:
2.14 m
Max Height:
21.65 m
Weight & Ballast
Displacement:
13,500 kg
Ballast:
4,850 kg
Ballast Type:
Lead
Sail Plan
Sail Area (reported):
138.00 m²
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
D2-75
Engine Power:
72 HP
Fuel Capacity:
320 L
Water Capacity:
790 L
Performance Ratios
Hull Speed:
8.90 knots
SA/Displacement (Reported):
24.85
Ballast/Disp Ratio:
35.93%
Displacement/Length:
154.60
Comfort Ratio:
27.61
Capsize Screening:
1.91
Notes
LOD: 14.99m / 49.17 ft.
