ADAMS 10
Built by Adams Yachts (AU)
• Designed by Joe Adams
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1980
Number Built:
100
Dimensions
Length Overall (LOA):
10.06 m
Length Waterline (LWL):
9.49 m
Beam:
2.63 m
Draft (Max):
1.75 m
Weight & Ballast
Displacement:
2,953 kg
Ballast:
1,559 kg
Ballast Type:
Lead

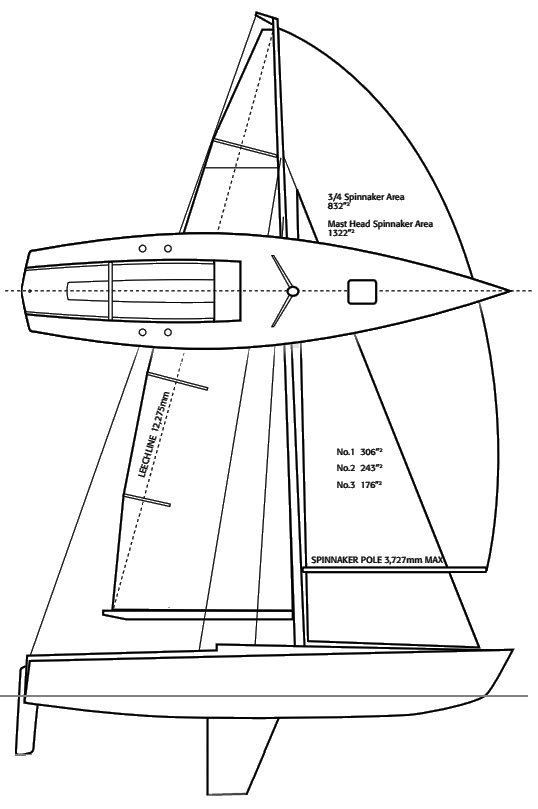

Sail Plan
Foresail Area:
18.70 m²
Mainsail Area:
22.06 m²
Total Sail Area (calculated):
40.76 m²
Sail Area (reported):
39.02 m²
I (Fore Triangle Height):
10.52 m
J (Fore Triangle Base):
3.56 m
P (Mainsail Hoist):
11.58 m
E (Boom Length):
3.81 m
Engine & Systems
Performance Ratios
Hull Speed:
7.48 knots
SA/Displacement (Calculated):
19.81
SA/Displacement (Reported):
19.33
Ballast/Disp Ratio:
52.80%
Displacement/Length:
96.34
Comfort Ratio:
18.01
Capsize Screening:
1.85
S-Number:
4.82
