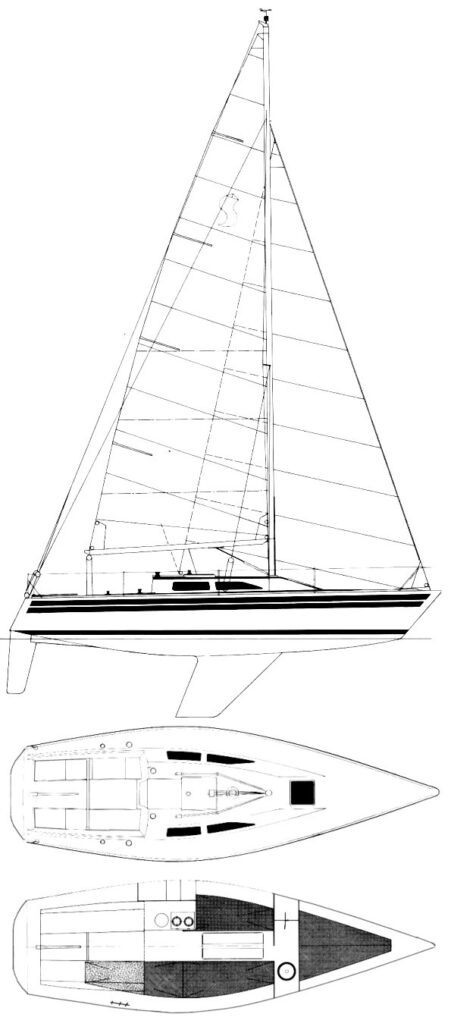

BANNER 30
Built by I.N. FIBERBÅDE (DEN)
• Designed by Niels Jeppesen
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1979
Last Built:
1990
Number Built:
120
Dimensions
Length Overall (LOA):
9.00 m
Length Waterline (LWL):
7.10 m
Beam:
2.80 m
Draft (Max):
1.65 m
Weight & Ballast
Displacement:
2,550 kg
Ballast:
1,225 kg
Sail Plan
Foresail Area:
15.51 m²
Mainsail Area:
19.33 m²
Total Sail Area (calculated):
34.84 m²
Sail Area (reported):
34.84 m²
I (Fore Triangle Height):
9.69 m
J (Fore Triangle Base):
3.20 m
P (Mainsail Hoist):
10.45 m
E (Boom Length):
3.70 m
Engine & Systems
Water Capacity:
26 L
Performance Ratios
Hull Speed:
6.47 knots
SA/Displacement (Calculated):
18.67
SA/Displacement (Reported):
19.03
Ballast/Disp Ratio:
48.04%
Displacement/Length:
198.42
Comfort Ratio:
17.98
Capsize Screening:
2.07
S-Number:
2.96
Notes
A MkII version was introduced in 1988.
