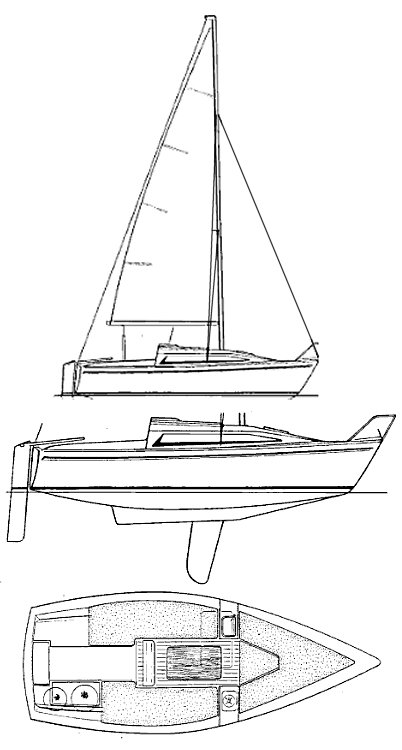

BAHIA 22 (JEANNEAU)
Built by Jeanneau (FRA)
• Designed by Harlé
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1983
Last Built:
1987
Dimensions
Length Overall (LOA):
6.93 m
Length Waterline (LWL):
5.50 m
Beam:
2.42 m
Draft (Max):
1.45 m
Draft (Min):
0.40 m
Weight & Ballast
Displacement:
840 kg
Ballast:
281 kg
Sail Plan
Foresail Area:
7.33 m²
Mainsail Area:
10.17 m²
Total Sail Area (calculated):
17.50 m²
Sail Area (reported):
19.51 m²
I (Fore Triangle Height):
6.14 m
J (Fore Triangle Base):
2.39 m
P (Mainsail Hoist):
7.42 m
E (Boom Length):
2.74 m
Engine & Systems
Performance Ratios
Hull Speed:
5.69 knots
SA/Displacement (Calculated):
19.66
SA/Displacement (Reported):
22.33
Ballast/Disp Ratio:
33.48%
Displacement/Length:
140.83
Comfort Ratio:
9.31
Capsize Screening:
2.59
S-Number:
3.95
Notes
A fixed keel version also available.
