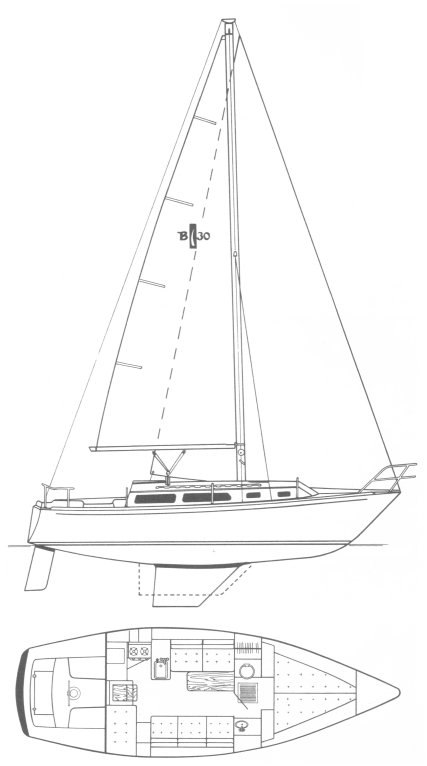

BAHAMA 30 (ISLANDER)
Built by Islander Yachts (USA)
• Designed by Bob Finch
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1973
Last Built:
1985
Dimensions
Length Overall (LOA):
9.12 m
Length Waterline (LWL):
7.49 m
Beam:
3.05 m
Draft (Max):
1.52 m
Headroom:
1.91 m
Max Height:
13.26 m
Weight & Ballast
Displacement:
3,733 kg
Ballast:
1,420 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
23.69 m²
Mainsail Area:
18.03 m²
Total Sail Area (calculated):
41.72 m²
Sail Area (reported):
41.71 m²
I (Fore Triangle Height):
12.19 m
J (Fore Triangle Base):
3.89 m
P (Mainsail Hoist):
10.29 m
E (Boom Length):
3.51 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
MD7A
Engine Power:
13 HP
Fuel Capacity:
76 L
Water Capacity:
95 L
Performance Ratios
Hull Speed:
6.64 knots
SA/Displacement (Calculated):
17.34
SA/Displacement (Reported):
17.68
Ballast/Disp Ratio:
38.03%
Displacement/Length:
247.40
Comfort Ratio:
22.62
Capsize Screening:
1.98
S-Number:
2.26
Notes
Same hull as the ISLANDER 30 MKII.
