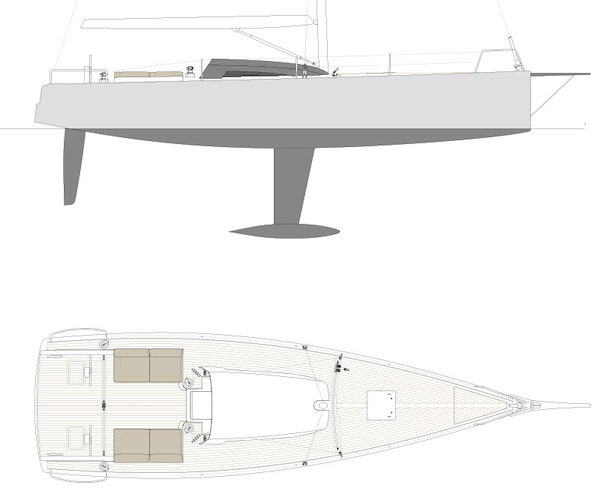

B34 (BRENTA)
Built by B-Yachts (ITA)
• Designed by Luca Brenta
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
Carbon fiber/e-glass
First Built:
2020
Dimensions
Length Overall (LOA):
9.99 m
Length Waterline (LWL):
8.86 m
Beam:
2.95 m
Draft (Max):
2.15 m
Weight & Ballast
Displacement:
3,300 kg
Ballast Type:
Steel (Weldox) with lead bulb
Sail Plan
Foresail Area:
26.73 m²
Mainsail Area:
29.57 m²
Total Sail Area (calculated):
56.30 m²
Sail Area (reported):
67.00 m²
I (Fore Triangle Height):
13.89 m
J (Fore Triangle Base):
3.85 m
P (Mainsail Hoist):
12.97 m
E (Boom Length):
4.56 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel; Saildrive
Engine Model:
D1-20
Engine Power:
20 HP
Fuel Capacity:
70 L
Water Capacity:
110 L
Performance Ratios
Hull Speed:
7.22 knots
SA/Displacement (Calculated):
25.40
SA/Displacement (Reported):
30.83
Displacement/Length:
132.21
Comfort Ratio:
18.11
Capsize Screening:
2.00
S-Number:
4.88
Notes
Sail area:
