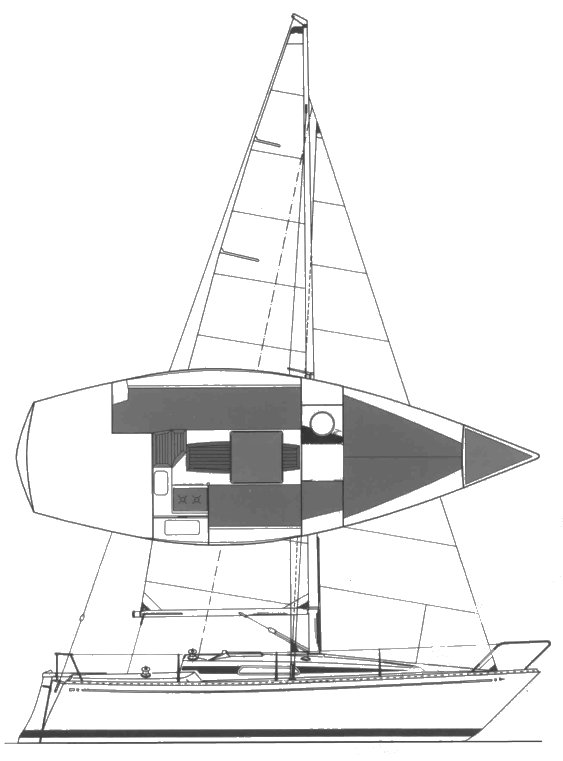

AVANCE 245
Built by AB Oja Batar (FIN)
• Designed by Peter Norlin
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1972
Dimensions
Length Overall (LOA):
7.48 m
Length Waterline (LWL):
6.00 m
Beam:
2.54 m
Draft (Max):
1.42 m
Weight & Ballast
Displacement:
1,750 kg
Ballast:
850 kg
Sail Plan
Foresail Area:
11.10 m²
Mainsail Area:
10.59 m²
Total Sail Area (calculated):
21.69 m²
Sail Area (reported):
21.65 m²
I (Fore Triangle Height):
8.38 m
J (Fore Triangle Base):
2.65 m
P (Mainsail Hoist):
8.69 m
E (Boom Length):
2.44 m
Engine & Systems
Performance Ratios
Hull Speed:
5.94 knots
SA/Displacement (Calculated):
14.94
SA/Displacement (Reported):
15.20
Ballast/Disp Ratio:
48.57%
Displacement/Length:
225.96
Comfort Ratio:
16.75
Capsize Screening:
2.13
S-Number:
2.22
