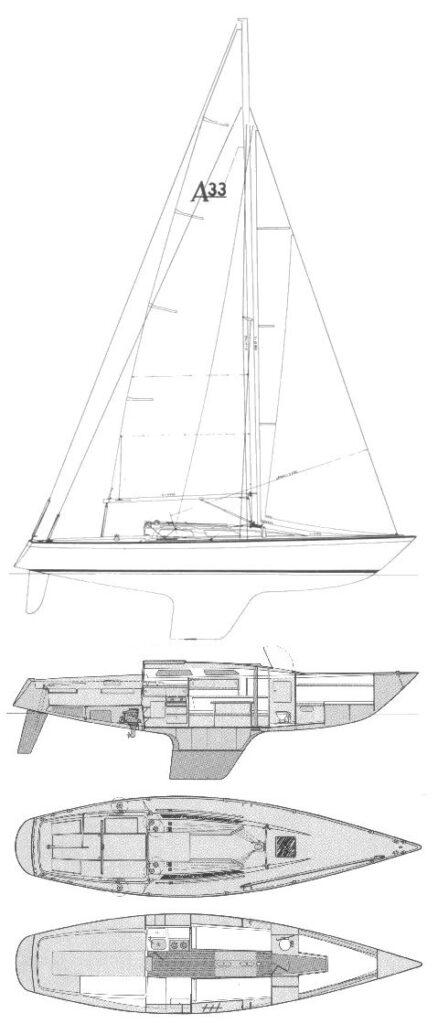

ABBOTT 33
Built by Abbott Boats (CAN)
• Designed by Jan Larsen/Abbott
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1980
Number Built:
40
Dimensions
Length Overall (LOA):
10.15 m
Length Waterline (LWL):
8.21 m
Beam:
2.50 m
Draft (Max):
1.65 m
Weight & Ballast
Displacement:
2,747 kg
Ballast:
1,499 kg
Sail Plan
Foresail Area:
19.23 m²
Mainsail Area:
20.86 m²
Total Sail Area (calculated):
40.09 m²
Sail Area (reported):
40.13 m²
I (Fore Triangle Height):
10.97 m
J (Fore Triangle Base):
3.51 m
P (Mainsail Hoist):
11.75 m
E (Boom Length):
3.55 m
Engine & Systems
Water Capacity:
57 L
Performance Ratios
Hull Speed:
6.95 knots
SA/Displacement (Calculated):
20.44
SA/Displacement (Reported):
20.86
Ballast/Disp Ratio:
54.55%
Displacement/Length:
138.61
Comfort Ratio:
19.65
Capsize Screening:
1.80
S-Number:
4.10
Notes
The ABBOTT 33 evolved from the SCAN-KAP 99, designed by Jan Larson and built in Denmark.
