ATLANTIC (BURGESS)
Built by Cape Cod Shipbuilding (USA)
• Designed by W. Starling Burgess
General Information
Hull Type:
Fin Keel
Rigging Type:
Fractional Sloop
Construction:
Wood or FG
First Built:
1929
Dimensions
Length Overall (LOA):
9.32 m
Length Waterline (LWL):
6.55 m
Beam:
1.98 m
Draft (Max):
1.45 m
Weight & Ballast
Displacement:
2,068 kg
Ballast:
1,286 kg
Ballast Type:
Lead

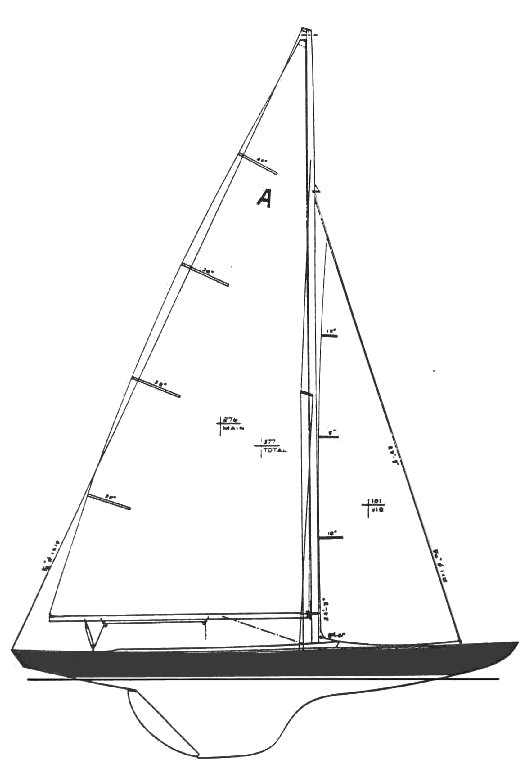

Sail Plan
Foresail Area:
10.71 m²
Mainsail Area:
24.29 m²
Total Sail Area (calculated):
35.00 m²
Sail Area (reported):
35.02 m²
I (Fore Triangle Height):
7.99 m
J (Fore Triangle Base):
2.68 m
P (Mainsail Hoist):
10.49 m
E (Boom Length):
4.63 m
Engine & Systems
Performance Ratios
Hull Speed:
6.21 knots
SA/Displacement (Calculated):
21.56
SA/Displacement (Reported):
22.00
Ballast/Disp Ratio:
62.18%
Displacement/Length:
204.79
Comfort Ratio:
24.02
Capsize Screening:
1.57
S-Number:
3.18
Notes
The original 100 wood ATLANTICS were built by Abeking & Rasmussen of Germany in 1929. At least another 100 of fiberglass have been built since 1954.
