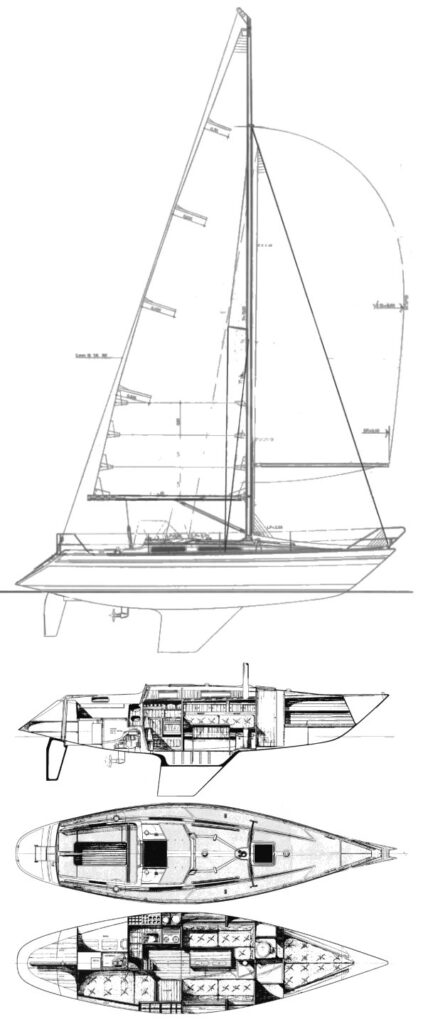

ATHENA 34
Built by Helmsman Yachts, Saxarplast (SWE)
• Designed by Håkan Södergren
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1980
Last Built:
1985
Number Built:
70
Dimensions
Length Overall (LOA):
10.55 m
Length Waterline (LWL):
8.40 m
Beam:
2.88 m
Draft (Max):
1.80 m
Weight & Ballast
Displacement:
4,740 kg
Ballast:
2,070 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
22.78 m²
Mainsail Area:
27.30 m²
Total Sail Area (calculated):
50.08 m²
Sail Area (reported):
50.07 m²
I (Fore Triangle Height):
11.75 m
J (Fore Triangle Base):
3.88 m
P (Mainsail Hoist):
13.00 m
E (Boom Length):
4.20 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Performance Ratios
Hull Speed:
7.03 knots
SA/Displacement (Calculated):
17.75
SA/Displacement (Reported):
18.10
Ballast/Disp Ratio:
43.67%
Displacement/Length:
222.86
Comfort Ratio:
27.32
Capsize Screening:
1.73
S-Number:
2.56
Notes
First sold by Posiedon Yachts and built in Sweden (boats with the hull number 1-62). Some time later the molds were aquired by Finngulf Marine(FIN) where at least 10 more were built with some modifications to the deck and interior.(FINNGULF 34)
