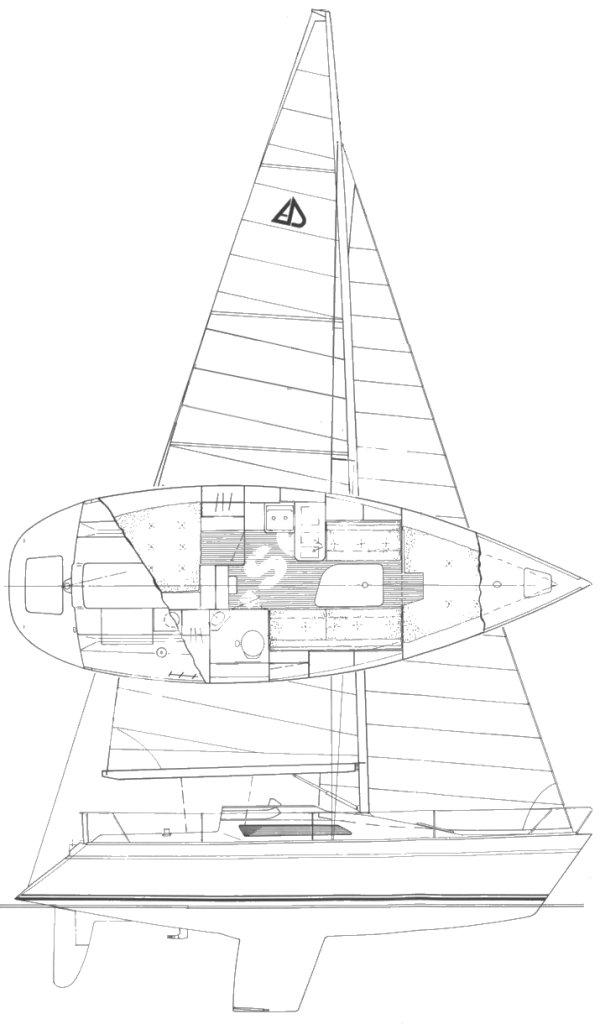

ARTINA 29
Built by Artekno OY (FIN)
• Designed by Hans Groop
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1988
Dimensions
Length Overall (LOA):
8.70 m
Length Waterline (LWL):
7.40 m
Beam:
2.97 m
Draft (Max):
1.57 m
Weight & Ballast
Displacement:
3,100 kg
Ballast:
1,300 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
15.68 m²
Mainsail Area:
20.99 m²
Total Sail Area (calculated):
36.67 m²
Sail Area (reported):
24.99 m²
I (Fore Triangle Height):
10.12 m
J (Fore Triangle Base):
3.10 m
P (Mainsail Hoist):
11.20 m
E (Boom Length):
3.75 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Performance Ratios
Hull Speed:
6.60 knots
SA/Displacement (Calculated):
17.25
SA/Displacement (Reported):
11.99
Ballast/Disp Ratio:
41.94%
Displacement/Length:
213.15
Comfort Ratio:
19.93
Capsize Screening:
2.06
S-Number:
2.62
Notes
Some have masthead rigs.
