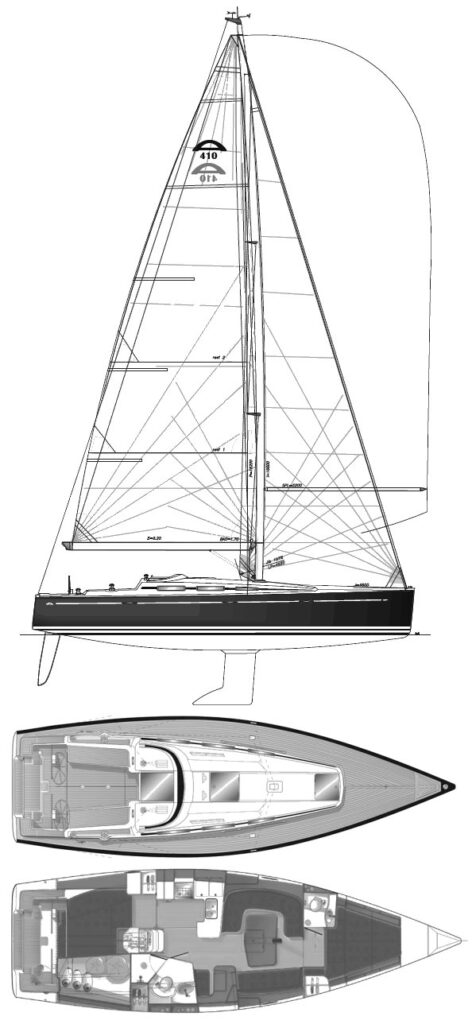

ARCONA 410
Built by Arcona Yachts (SWE)
• Designed by Stefan Qviberg
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2009
Dimensions
Length Overall (LOA):
12.20 m
Length Waterline (LWL):
11.20 m
Beam:
3.90 m
Draft (Max):
2.20 m
Max Height:
19.80 m
Weight & Ballast
Displacement:
7,800 kg
Ballast:
2,600 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
37.77 m²
Mainsail Area:
47.38 m²
Total Sail Area (calculated):
85.15 m²
Sail Area (reported):
85.19 m²
I (Fore Triangle Height):
16.60 m
J (Fore Triangle Base):
4.55 m
P (Mainsail Hoist):
16.20 m
E (Boom Length):
5.85 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3JH5/SD50
Fuel Capacity:
144 L
Water Capacity:
231 L
Performance Ratios
Hull Speed:
8.12 knots
SA/Displacement (Calculated):
21.65
SA/Displacement (Reported):
22.11
Ballast/Disp Ratio:
33.33%
Displacement/Length:
154.80
Comfort Ratio:
23.62
Capsize Screening:
1.99
S-Number:
3.97
Notes
Draft:
