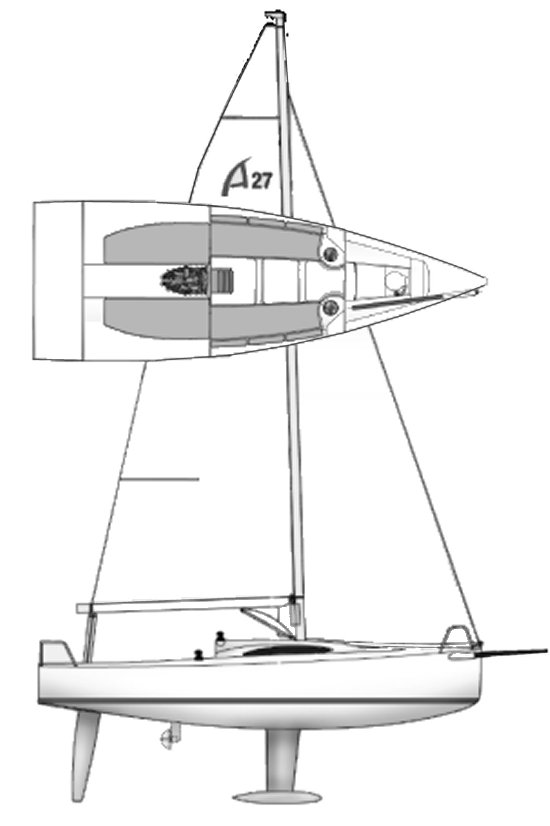

A 27 (ARCHAMBAULT)
Built by Archambault (FRA)
• Designed by Joubert - Nivelt
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG (foam sandwich)
First Built:
2014
Dimensions
Length Overall (LOA):
8.35 m
Length Waterline (LWL):
7.25 m
Beam:
2.98 m
Draft (Max):
1.65 m
Weight & Ballast
Displacement:
2,155 kg
Ballast:
800 kg
Sail Plan
Foresail Area:
16.53 m²
Mainsail Area:
20.98 m²
Total Sail Area (calculated):
37.51 m²
Sail Area (reported):
42.46 m²
I (Fore Triangle Height):
10.67 m
J (Fore Triangle Base):
3.10 m
P (Mainsail Hoist):
10.90 m
E (Boom Length):
3.85 m
Engine & Systems
Performance Ratios
Hull Speed:
6.54 knots
SA/Displacement (Calculated):
22.48
SA/Displacement (Reported):
25.95
Ballast/Disp Ratio:
37.14%
Displacement/Length:
157.49
Comfort Ratio:
14.16
Capsize Screening:
2.33
S-Number:
4.03
Notes
There is also a swing keel version with twin rudders.
