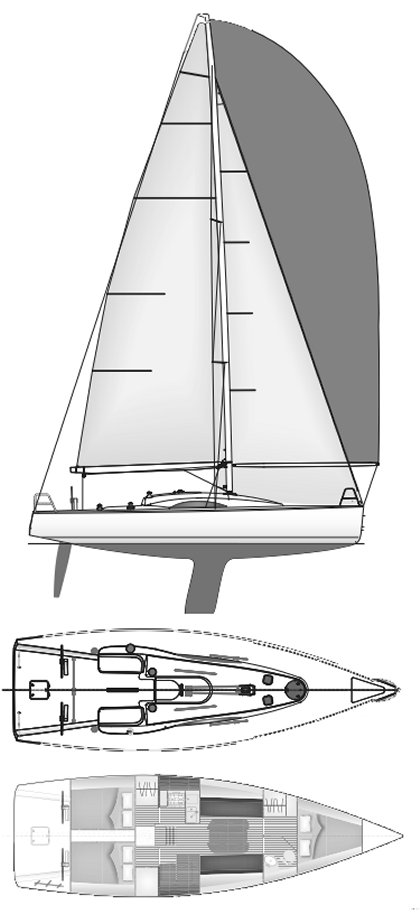

ARCHAMBAULT 40RC
Built by Arrchambault (FRA)
• Designed by Joubert-Nivelt
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2005
Dimensions
Length Overall (LOA):
11.98 m
Length Waterline (LWL):
10.54 m
Beam:
3.75 m
Draft (Max):
2.48 m
Weight & Ballast
Displacement:
6,650 kg
Ballast:
3,100 kg
Sail Plan
Foresail Area:
36.44 m²
Mainsail Area:
42.20 m²
Total Sail Area (calculated):
78.64 m²
Sail Area (reported):
78.69 m²
I (Fore Triangle Height):
15.51 m
J (Fore Triangle Base):
4.70 m
P (Mainsail Hoist):
15.78 m
E (Boom Length):
5.35 m
Engine & Systems
Engine Make:
Nanni
Engine Type:
Diesel
Fuel Capacity:
76 L
Water Capacity:
98 L
Performance Ratios
Hull Speed:
7.88 knots
SA/Displacement (Calculated):
22.24
SA/Displacement (Reported):
22.71
Ballast/Disp Ratio:
46.61%
Displacement/Length:
158.29
Comfort Ratio:
22.25
Capsize Screening:
2.01
S-Number:
3.98
Notes
Draft Shallow keel: 2.20m/7.22'
