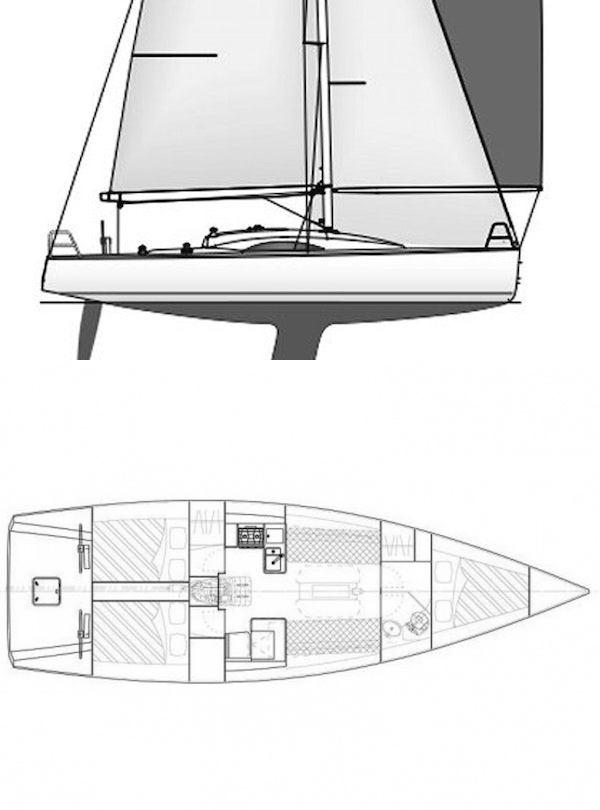

ARCHAMBAULT 40
Built by Archambault (FRA)
• Designed by Joubert-Nivelt
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2004
Dimensions
Length Overall (LOA):
11.99 m
Length Waterline (LWL):
11.25 m
Beam:
3.76 m
Draft (Max):
2.41 m
Weight & Ballast
Displacement:
6,200 kg
Ballast:
2,500 kg
Sail Plan
Foresail Area:
36.64 m²
Mainsail Area:
41.24 m²
Total Sail Area (calculated):
77.88 m²
Sail Area (reported):
96.43 m²
I (Fore Triangle Height):
16.29 m
J (Fore Triangle Base):
4.50 m
P (Mainsail Hoist):
15.00 m
E (Boom Length):
5.50 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Model:
D1-30
Engine Power:
29 HP
Performance Ratios
Hull Speed:
8.14 knots
SA/Displacement (Calculated):
23.08
SA/Displacement (Reported):
29.15
Ballast/Disp Ratio:
40.32%
Displacement/Length:
121.35
Comfort Ratio:
19.76
Capsize Screening:
2.07
S-Number:
4.80
Notes
Displacement is light. Actual displacement generally around 15,100 lbs/6850kg
