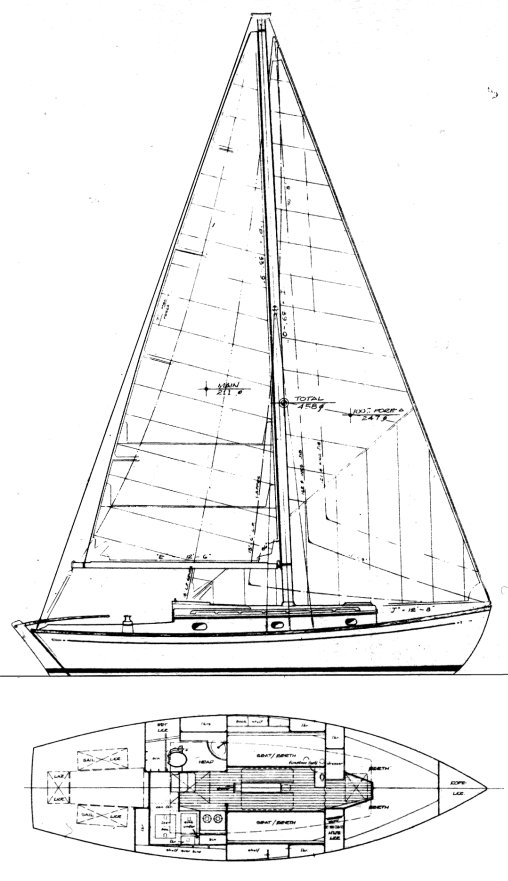

ANNIE 30
Built by Morris Yachts (USA)
• Designed by Chuck Paine
General Information
Hull Type:
Long keel w/trans. hung rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1980
Number Built:
16
Dimensions
Length Overall (LOA):
8.97 m
Length Waterline (LWL):
7.47 m
Beam:
2.87 m
Draft (Max):
1.37 m
Weight & Ballast
Displacement:
5,002 kg
Ballast:
1,996 kg
Ballast Type:
lead
Sail Plan
Foresail Area:
22.34 m²
Mainsail Area:
19.60 m²
Total Sail Area (calculated):
41.94 m²
Sail Area (reported):
41.53 m²
I (Fore Triangle Height):
11.89 m
J (Fore Triangle Base):
3.76 m
P (Mainsail Hoist):
10.29 m
E (Boom Length):
3.81 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Model:
W13
Engine Power:
13 HP
Fuel Capacity:
68 L
Water Capacity:
140 L
Performance Ratios
Hull Speed:
6.63 knots
SA/Displacement (Calculated):
14.34
SA/Displacement (Reported):
14.49
Ballast/Disp Ratio:
39.90%
Displacement/Length:
334.74
Comfort Ratio:
33.07
Capsize Screening:
1.70
S-Number:
1.34
Notes
Available with a cutter rig.
