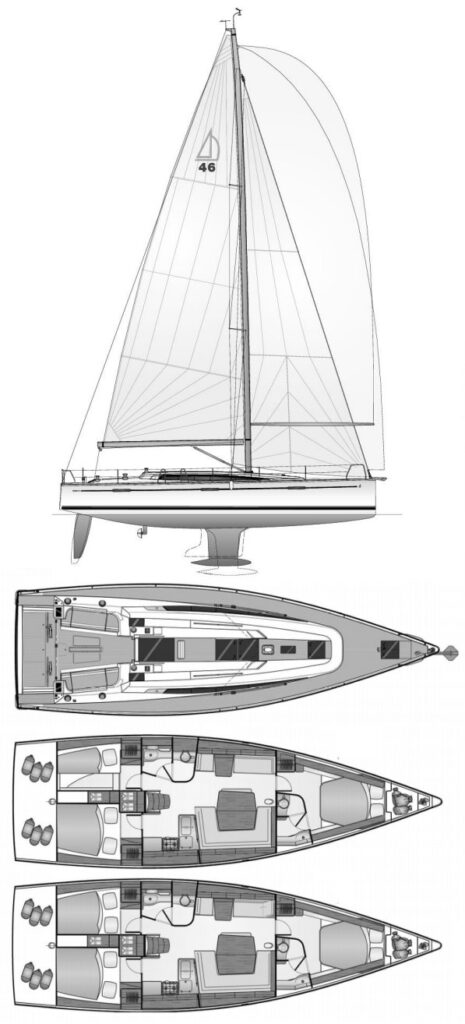

DEHLER 46
Built by Dehler
• Designed by Judel/Vrolijk
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG/vinylester (composite infusion)
First Built:
2015
Dimensions
Length Overall (LOA):
14.76 m
Length Waterline (LWL):
12.90 m
Beam:
4.35 m
Draft (Max):
2.25 m
Max Height:
21.20 m
Weight & Ballast
Displacement:
11,500 kg
Ballast:
3,500 kg
Ballast Type:
lead
Sail Plan
Foresail Area:
47.88 m²
Mainsail Area:
55.01 m²
Total Sail Area (calculated):
102.89 m²
Sail Area (reported):
114.80 m²
I (Fore Triangle Height):
18.10 m
J (Fore Triangle Base):
5.29 m
P (Mainsail Hoist):
17.60 m
E (Boom Length):
6.25 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Power:
51 HP
Fuel Capacity:
210 L
Water Capacity:
450 L
Performance Ratios
Hull Speed:
8.72 knots
SA/Displacement (Calculated):
20.19
SA/Displacement (Reported):
23.00
Ballast/Disp Ratio:
30.43%
Displacement/Length:
149.33
Comfort Ratio:
25.75
Capsize Screening:
1.95
S-Number:
3.88
Notes
Specs above are for the standard hull and rig.
