DEHLER 37 CWS
Built by Dehler Yachts (GER)
• Designed by E. G. van de Stadt
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1990
Last Built:
1996
Dimensions
Length Overall (LOA):
11.00 m
Length Waterline (LWL):
9.00 m
Beam:
3.50 m
Draft (Max):
1.80 m
Headroom:
1.80 m
Weight & Ballast
Displacement:
5,300 kg
Ballast:
2,100 kg
Ballast Type:
Cast iron
Sail Plan
Sail Area (reported):
62.00 m²
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
3GM
Engine Power:
27 HP
Fuel Capacity:
98 L
Water Capacity:
201 L
Performance Ratios
Hull Speed:
7.28 knots
SA/Displacement (Reported):
20.81
Ballast/Disp Ratio:
39.63%
Displacement/Length:
202.56
Comfort Ratio:
22.22
Capsize Screening:
2.03
Notes

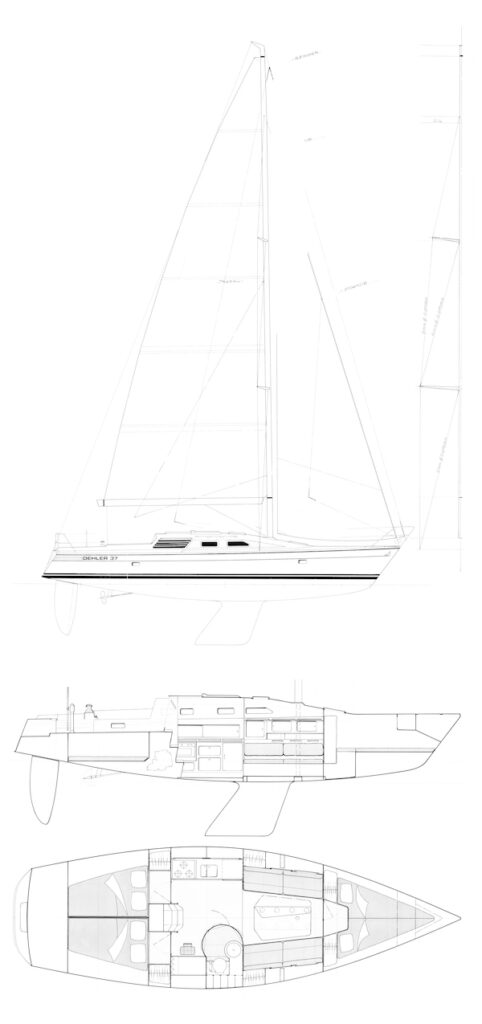

Specs and drawing are from Van de Stadt plans (#422.41 and 422.42), courtesy of Van de Stadt Design (http://www.stadtdesign.com).
