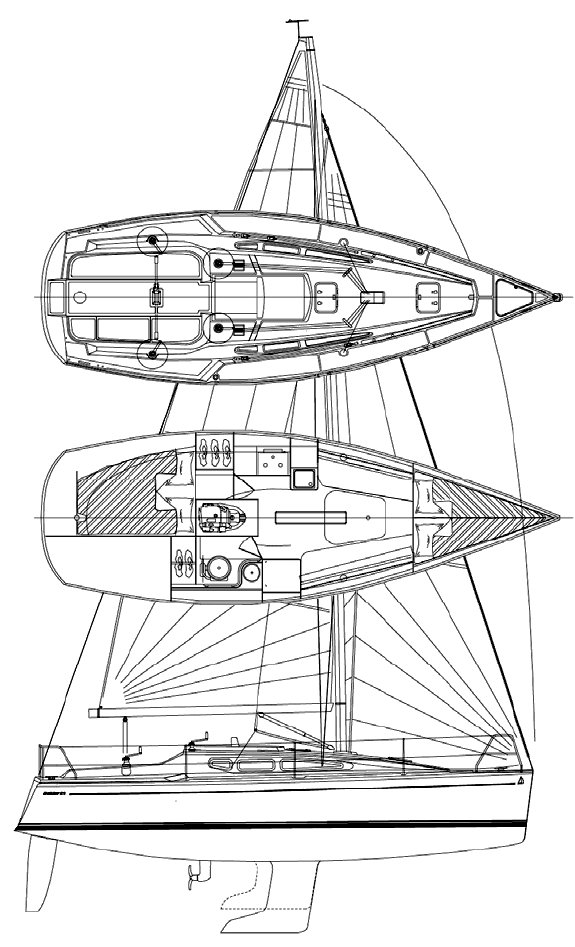

DEHLER 29
Built by Dehler (GER)
• Designed by Judel/Vrolijk
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1998
Dimensions
Length Overall (LOA):
8.75 m
Length Waterline (LWL):
8.00 m
Beam:
2.99 m
Draft (Max):
1.58 m
Max Height:
13.55 m
Weight & Ballast
Displacement:
3,700 kg
Ballast:
1,120 kg
Sail Plan
Foresail Area:
17.71 m²
Mainsail Area:
21.99 m²
Total Sail Area (calculated):
39.70 m²
Sail Area (reported):
43.01 m²
I (Fore Triangle Height):
11.25 m
J (Fore Triangle Base):
3.15 m
P (Mainsail Hoist):
11.00 m
E (Boom Length):
4.00 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Power:
21 HP
Fuel Capacity:
60 L
Water Capacity:
100 L
Performance Ratios
Hull Speed:
6.87 knots
SA/Displacement (Calculated):
16.60
SA/Displacement (Reported):
18.34
Ballast/Disp Ratio:
30.27%
Displacement/Length:
201.32
Comfort Ratio:
22.31
Capsize Screening:
1.95
S-Number:
2.68
Notes
Alternate keels:
