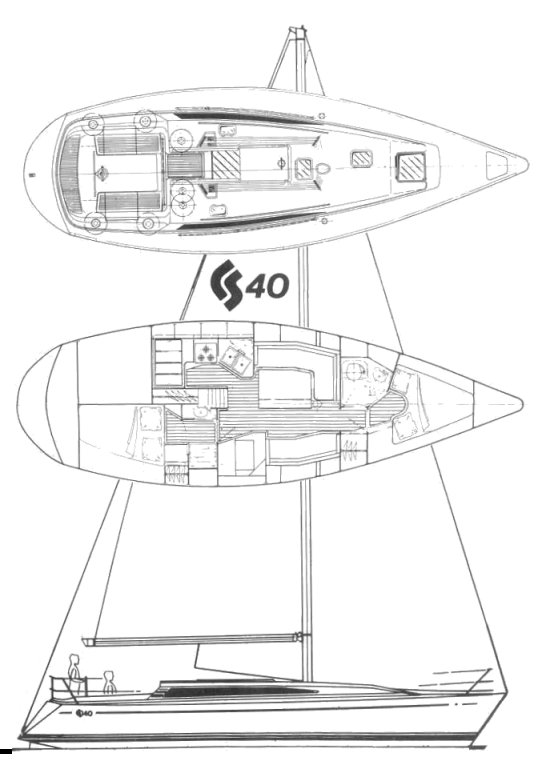

CS 40
Built by Canadian Sailcraft (CAN)
• Designed by Tony Castro
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1987
Dimensions
Length Overall (LOA):
11.96 m
Length Waterline (LWL):
9.96 m
Beam:
3.86 m
Draft (Max):
2.01 m
Weight & Ballast
Displacement:
7,711 kg
Ballast:
3,402 kg
Sail Plan
Foresail Area:
36.72 m²
Mainsail Area:
34.49 m²
Total Sail Area (calculated):
71.21 m²
Sail Area (reported):
71.16 m²
I (Fore Triangle Height):
15.54 m
J (Fore Triangle Base):
4.72 m
P (Mainsail Hoist):
13.72 m
E (Boom Length):
5.03 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Power:
43 HP
Fuel Capacity:
189 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
7.66 knots
SA/Displacement (Calculated):
18.24
SA/Displacement (Reported):
18.61
Ballast/Disp Ratio:
44.12%
Displacement/Length:
217.65
Comfort Ratio:
25.78
Capsize Screening:
1.97
S-Number:
2.68
Notes
Deep keel: 6.83'/2.08m
