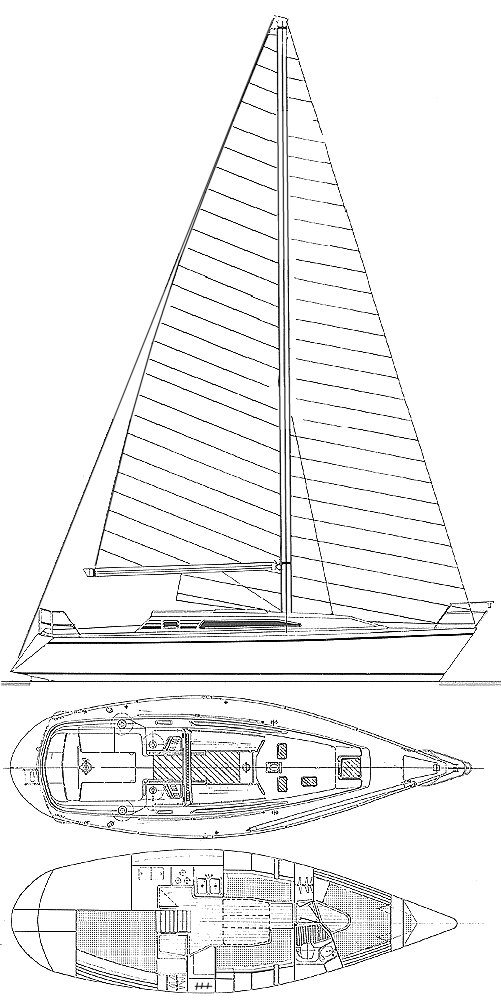

CS 36 MERLIN
Built by Canadian Sailcraft (CAN)
• Designed by Tony Castro
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1986
Last Built:
1990
Number Built:
100
Dimensions
Length Overall (LOA):
10.97 m
Length Waterline (LWL):
8.89 m
Beam:
3.51 m
Draft (Max):
1.91 m
Weight & Ballast
Displacement:
5,897 kg
Ballast:
2,536 kg
Sail Plan
Foresail Area:
30.22 m²
Mainsail Area:
26.24 m²
Total Sail Area (calculated):
56.46 m²
Sail Area (reported):
56.49 m²
I (Fore Triangle Height):
13.87 m
J (Fore Triangle Base):
4.36 m
P (Mainsail Hoist):
12.04 m
E (Boom Length):
4.36 m
Engine & Systems
Engine Make:
Volvo Penta
Engine Type:
Diesel
Engine Power:
25 HP
Fuel Capacity:
151 L
Water Capacity:
265 L
Performance Ratios
Hull Speed:
7.24 knots
SA/Displacement (Calculated):
17.30
SA/Displacement (Reported):
17.66
Ballast/Disp Ratio:
43.00%
Displacement/Length:
233.82
Comfort Ratio:
24.88
Capsize Screening:
1.96
S-Number:
2.40
Notes
The CS 36 MERLIN, while having similar dimensions to the CS 36 TRADITIONAL, is a completely different design. While it was being produced a purchaser had five pages of options to choose from— a Kevlar or fibreglass hull; a swim platform or regular transom; a 28 hp diesel or a 43 hp turbo; a tall or regular rig and by the end, four keel configurations (shoal, wing, deep and performance bulb). As a result, other than the 20 or so that went into charter, no two Merlins are alike.
