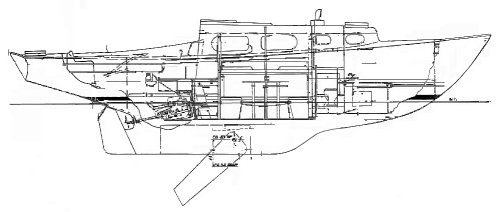

COLUMBIA 33 CARIBBEAN
Built by Columbia Yachts (USA)
• Designed by Wirth Munroe
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1963
Last Built:
1965
Number Built:
61
Dimensions
Length Overall (LOA):
10.08 m
Length Waterline (LWL):
7.32 m
Beam:
3.00 m
Draft (Max):
2.13 m
Draft (Min):
1.07 m
Weight & Ballast
Displacement:
4,990 kg
Ballast:
1,905 kg
Sail Plan
Foresail Area:
25.40 m²
Mainsail Area:
25.20 m²
Total Sail Area (calculated):
50.60 m²
Sail Area (reported):
50.63 m²
I (Fore Triangle Height):
12.34 m
J (Fore Triangle Base):
4.11 m
P (Mainsail Hoist):
10.67 m
E (Boom Length):
4.72 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Engine Power:
30 HP
Performance Ratios
Hull Speed:
6.56 knots
SA/Displacement (Calculated):
17.33
SA/Displacement (Reported):
17.69
Ballast/Disp Ratio:
38.18%
Displacement/Length:
355.23
Comfort Ratio:
30.30
Capsize Screening:
1.77
S-Number:
1.41
Notes
About 15 boats to this design were built by Crystaliner as the ARCO 33 (1959) before the molds came into the hands of Columbia Yachts.
