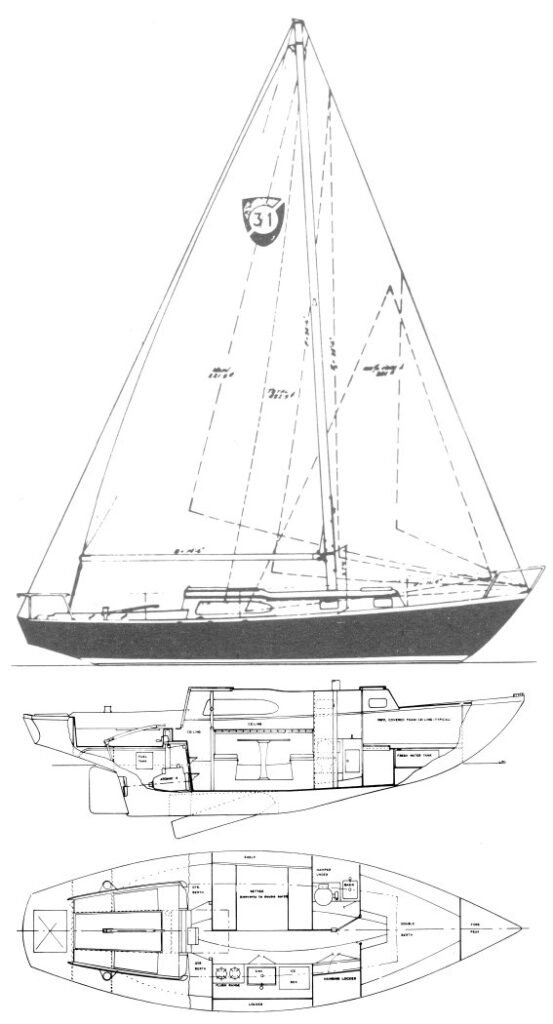

COLUMBIA 31
Built by Columbia Yachts (USA)
• Designed by Charles Morgan
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1965
Last Built:
1968
Number Built:
97
Dimensions
Length Overall (LOA):
9.30 m
Length Waterline (LWL):
6.55 m
Beam:
3.00 m
Draft (Max):
2.13 m
Draft (Min):
0.94 m
Weight & Ballast
Displacement:
3,856 kg
Ballast:
1,542 kg
Sail Plan
Foresail Area:
18.68 m²
Mainsail Area:
20.54 m²
Total Sail Area (calculated):
39.22 m²
Sail Area (reported):
39.21 m²
I (Fore Triangle Height):
10.82 m
J (Fore Triangle Base):
3.45 m
P (Mainsail Hoist):
9.30 m
E (Boom Length):
4.42 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Gas
Engine Model:
Atomic 4
Engine Power:
20 HP
Performance Ratios
Hull Speed:
6.21 knots
SA/Displacement (Calculated):
15.95
SA/Displacement (Reported):
16.26
Ballast/Disp Ratio:
40.00%
Displacement/Length:
381.82
Comfort Ratio:
25.86
Capsize Screening:
1.93
S-Number:
1.18
Notes
Derived from the Morgan designed 'TIGER CUB'(1963?).
