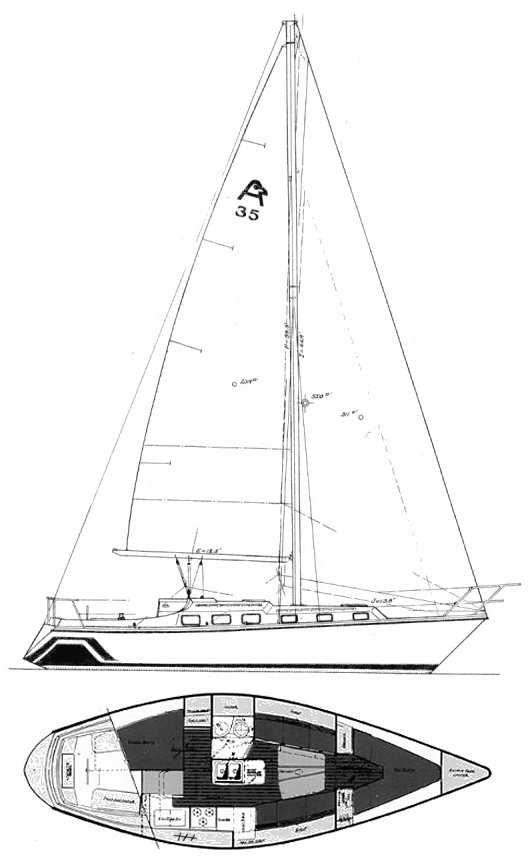

ALLMAND 35
Built by Allmand Boats Inc. (USA)
• Designed by W. H. Scott
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
Construction:
FG (solid)
First Built:
1981
Last Built:
1985
Dimensions
Length Overall (LOA):
10.59 m
Length Waterline (LWL):
8.59 m
Beam:
3.56 m
Draft (Max):
1.57 m
Weight & Ballast
Displacement:
6,849 kg
Ballast:
1,950 kg
Sail Plan
Foresail Area:
28.78 m²
Mainsail Area:
22.24 m²
Total Sail Area (calculated):
51.02 m²
Sail Area (reported):
51.00 m²
I (Fore Triangle Height):
13.69 m
J (Fore Triangle Base):
4.21 m
P (Mainsail Hoist):
11.67 m
E (Boom Length):
3.81 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Diesel
Engine Power:
30 HP
Fuel Capacity:
151 L
Water Capacity:
360 L
Performance Ratios
Hull Speed:
7.11 knots
SA/Displacement (Calculated):
14.15
SA/Displacement (Reported):
14.43
Ballast/Disp Ratio:
28.48%
Displacement/Length:
301.56
Comfort Ratio:
29.35
Capsize Screening:
1.89
S-Number:
1.53
Notes
Based on the earlier CAPTIVA 35.
