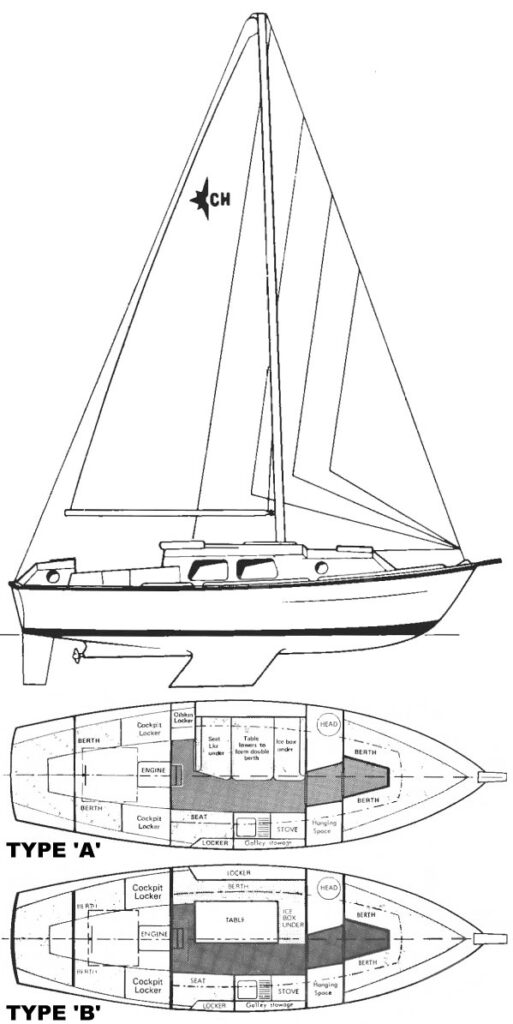

CHIEFTAIN 26 (WESTERLY)
Built by Westerly Marine Ltd. (UK)
• Designed by Laurent Giles
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Twin Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1972
Last Built:
1976
Number Built:
79
Dimensions
Length Overall (LOA):
7.92 m
Length Waterline (LWL):
6.50 m
Beam:
2.57 m
Draft (Max):
0.91 m
Weight & Ballast
Displacement:
3,039 kg
Ballast:
1,270 kg
Sail Plan
Foresail Area:
15.25 m²
Mainsail Area:
14.96 m²
Total Sail Area (calculated):
30.21 m²
Sail Area (reported):
30.19 m²
I (Fore Triangle Height):
9.91 m
J (Fore Triangle Base):
3.08 m
P (Mainsail Hoist):
8.53 m
E (Boom Length):
3.51 m
Engine & Systems
Engine Make:
Petter
Engine Type:
Diesel
Engine Power:
11 HP
Fuel Capacity:
34 L
Water Capacity:
95 L
Performance Ratios
Hull Speed:
6.19 knots
SA/Displacement (Calculated):
14.40
SA/Displacement (Reported):
14.68
Ballast/Disp Ratio:
41.79%
Displacement/Length:
308.22
Comfort Ratio:
26.66
Capsize Screening:
1.79
S-Number:
1.51
Notes
Base on the CENTAUR but with an aft cabin/center cockpit, bowsprit, and std. wheel steering.
