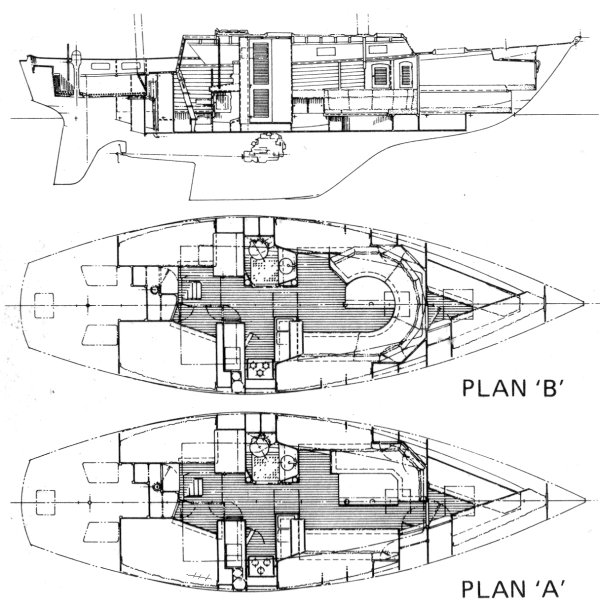

CHEOY LEE 38
Built by Cheoy Lee Shipyard Ltd.(HK)
• Designed by Ray Richards
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Ketch
Construction:
FG
First Built:
1968
Dimensions
Length Overall (LOA):
11.56 m
Length Waterline (LWL):
9.35 m
Beam:
3.66 m
Draft (Max):
1.73 m
Weight & Ballast
Displacement:
7,938 kg
Ballast:
3,175 kg
Ballast Type:
Iron
Sail Plan
Foresail Area:
30.65 m²
Mainsail Area:
24.52 m²
Total Sail Area (calculated):
55.17 m²
Sail Area (reported):
69.96 m²
I (Fore Triangle Height):
13.87 m
J (Fore Triangle Base):
4.42 m
P (Mainsail Hoist):
12.37 m
E (Boom Length):
3.96 m
Engine & Systems
Fuel Capacity:
170 L
Water Capacity:
416 L
Performance Ratios
Hull Speed:
7.42 knots
SA/Displacement (Calculated):
13.86
SA/Displacement (Reported):
17.94
Ballast/Disp Ratio:
40.00%
Displacement/Length:
270.80
Comfort Ratio:
30.08
Capsize Screening:
1.85
S-Number:
1.72
Notes
Available as a sloop. Sail area: 715 ft².
