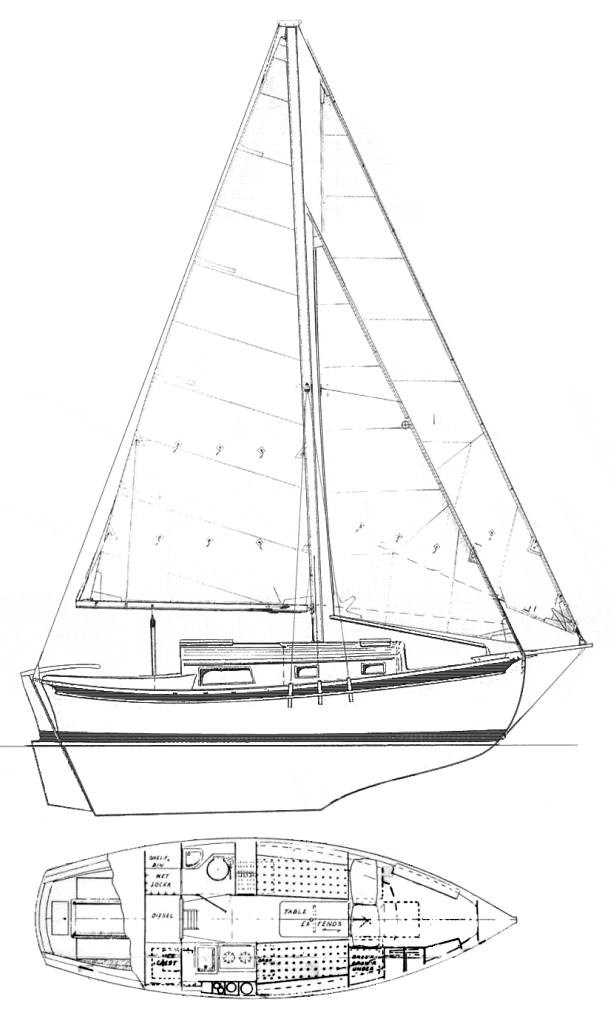

ALLEGRA 24
Built by Matrix Marine/Wilmette Boat Works (USA)
• Designed by Fred Bingham/Bruce Bingham
General Information
Hull Type:
Long keel w/trans. hung rudder
Rigging Type:
Cutter
Construction:
FG
First Built:
1984
Dimensions
Length Overall (LOA):
7.29 m
Length Waterline (LWL):
6.35 m
Beam:
2.44 m
Draft (Max):
1.07 m
Weight & Ballast
Displacement:
2,812 kg
Ballast:
998 kg
Sail Plan
Sail Area (reported):
33.35 m²
Engine & Systems
Fuel Capacity:
68 L
Water Capacity:
95 L
Performance Ratios
Hull Speed:
6.12 knots
SA/Displacement (Reported):
17.07
Ballast/Disp Ratio:
35.48%
Displacement/Length:
306.25
Comfort Ratio:
27.59
Capsize Screening:
1.74
Notes
Thanks to Tad Harvey for providing photo.
