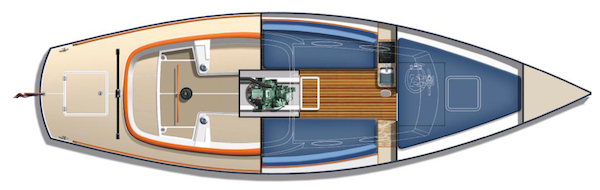

ALERION SPORT 30
Built by Alerion Yachts (USA)
• Designed by Langan Design Partners (USA)
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2016
Dimensions
Length Overall (LOA):
9.17 m
Length Waterline (LWL):
7.44 m
Beam:
2.67 m
Draft (Max):
1.52 m
Max Height:
12.78 m
Weight & Ballast
Displacement:
2,914 kg
Ballast:
1,202 kg
Sail Plan
Foresail Area:
15.44 m²
Mainsail Area:
20.98 m²
Total Sail Area (calculated):
36.42 m²
Sail Area (reported):
43.20 m²
I (Fore Triangle Height):
10.39 m
J (Fore Triangle Base):
2.97 m
P (Mainsail Hoist):
10.59 m
E (Boom Length):
3.96 m
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel; Saildrive
Engine Power:
12 HP
Performance Ratios
Hull Speed:
6.62 knots
SA/Displacement (Calculated):
17.86
SA/Displacement (Reported):
21.60
Ballast/Disp Ratio:
41.25%
Displacement/Length:
196.93
Comfort Ratio:
21.14
Capsize Screening:
1.89
S-Number:
2.88
Notes
AKA Alerion 30
