CATALINA 545
Built by Catalina Yachts (USA)
• Designed by Gerry Douglas
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
2020
Dimensions
Length Overall (LOA):
17.12 m
Length Waterline (LWL):
15.39 m
Beam:
4.72 m
Draft (Max):
1.91 m
Max Height:
22.71 m
Weight & Ballast
Displacement:
16,329 kg
Ballast:
6,350 kg

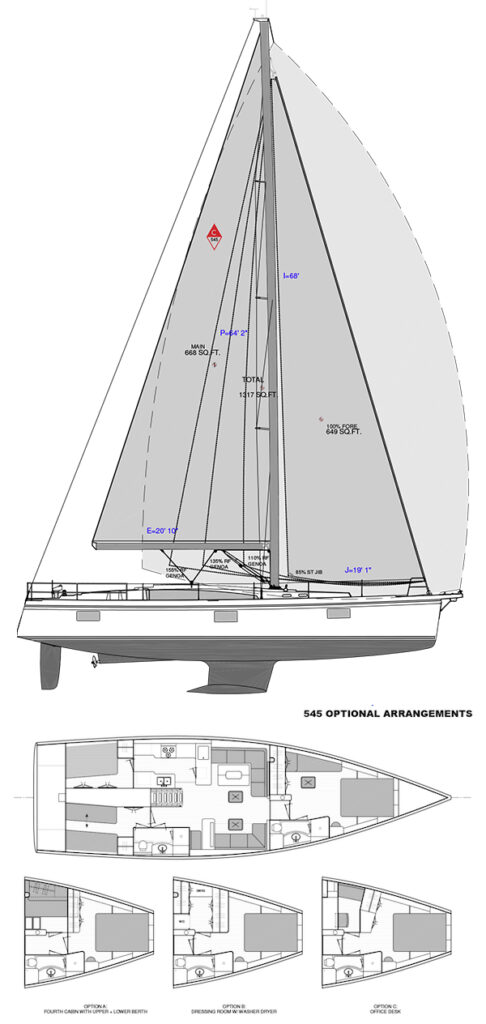

Sail Plan
Foresail Area:
60.27 m²
Mainsail Area:
62.09 m²
Total Sail Area (calculated):
122.36 m²
Sail Area (reported):
125.42 m²
I (Fore Triangle Height):
20.73 m
J (Fore Triangle Base):
5.82 m
P (Mainsail Hoist):
19.56 m
E (Boom Length):
6.35 m
Engine & Systems
Engine Type:
Diesel
Fuel Capacity:
492 L
Water Capacity:
852 L
Performance Ratios
Hull Speed:
9.52 knots
SA/Displacement (Calculated):
19.01
SA/Displacement (Reported):
19.90
Ballast/Disp Ratio:
38.89%
Displacement/Length:
124.79
Comfort Ratio:
27.71
Capsize Screening:
1.88
S-Number:
4.14
Notes
Hull Length: 53.5 ft
